Shinwa Laser Robo_Green_NeoESensor31_Receiver and Tripod Set 71613 1 S

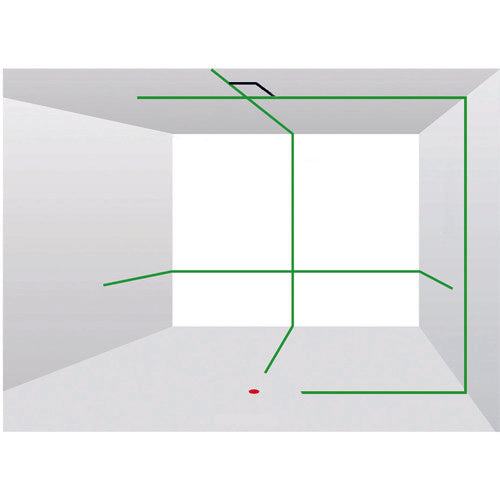

Catalogue number: 71613 Features: ●Laser irradiation is 2 vertical lines, horizontal line, large square, and ground marking point. ●Sensor + motor system allows you to quickly determine lines even in work sites with a lot of vibration and shaking. ●Line fixing mode is equipped, which is useful when you want to irradiate a line at an angle. ●AC adapter is included, allowing for long periods of continuous use. Horizontal adjustment tripod adapter is standard equipment. Applications: ●Laser robot used for setting various marking standards Specifications: ●Height (mm): 190 ●Width (mm): 128 ●Accuracy: ±1mm/7.5m ●Automatic correction range: ±3° ●Power supply: 4 alkaline AA batteries or AC adapter ●Protection rating: IP54 When using dry batteries ● Light source: Visible semiconductor laser ● Braking method: Sensor + motor method ● Maximum reach (m): Approximately 35 (when using laser receiver) ● Continuous use time (all line irradiation): Approximately 14 hours ● Battery low warning: When the switch is turned on, the laser light flashes for approximately 8 seconds ● Tilt warning: When the main unit is tilted significantly, the laser light flashes ● Standards: Dustproof and waterproof structure (IP54) ● Compensation: 1 year theft and fire compensation included ● Wavelength (nm): 635 (lower spot 650 nm) ● Power supply (V): 4 alkaline AA dry batteries or AC adapter ● Vertical 2-direction square, horizontal 1-direction, ground mark ● Indication accuracy (mm): Vertical line Horizontal line: ±1 at 7.5 m ● Output: 1mw or less (JIS class 2) ● Horizontal line emission angle: Approximately 115 ° ● Vertical line emission angle: Approximately 120 ° ● Line light width (mm): Approximately 1.5 at 5 m Material / Finish: ● Main body: Brass, aluminum die-cast ● Case: ABS resin Set contents/accessories: ● Laser level: 71603 ● Receiver: 71501 ● Tripod: 76629 ● 4 AA alkaline batteries ● AC adapter ● Level adjustment tripod adapter ● Aluminum case
