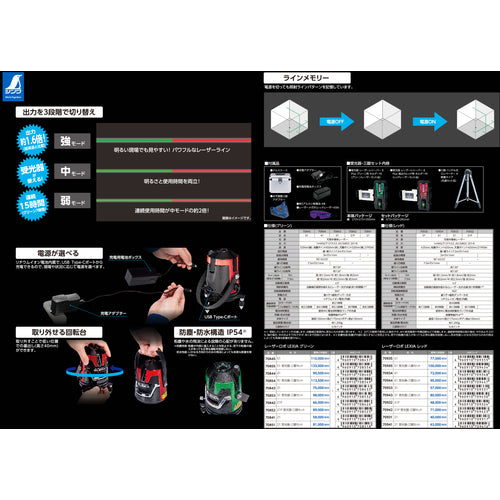

Catalog number: 70931 Features: ●Can emit horizontal lines at a position 15 mm from the floor. ●Light intensity can be switched between three levels. ●High output in strong mode, can be used for a long time in weak mode. Applications: ●For marking out work on site. Specifications: ● Height (mm): 175 ● Width (mm): 130 ● Precision: ±1mm/7.5m ● Automatic correction range: ±3° ● Power supply: Lithium-ion battery (built-in), charging adapter, AA battery ● Protection rating: IP54 ● Light source: Visible semiconductor laser ● Laser safety standard: 1mmW or less (Class 2 JIS C6802:2014) ● Braking method: Pendulum + magnetic damper method ● Line width (mm): 5m Weak mode approx. 1.5mm, medium mode approx. 1.8mm, strong mode approx. 2mm ● Right angle precision: 90° ±0.03mm ● Battery life: Medium mode Horizontal line only approx. 40 hours, full irradiation approx. 17 hours ● Wavelength: 635mm, ground mark point 650mm ● Power supply (V): Lithium-ion battery (built-in), charging adapter, AA battery ● Vertical 1 direction, horizontal 1 direction, ground mark Set contents/accessories: ● 4 AA alkaline batteries ● AC adapter ● Level adjustment tripod adapter ● Aluminum case ● Charging battery box ● Laser glasses ● Lithium-ion battery
