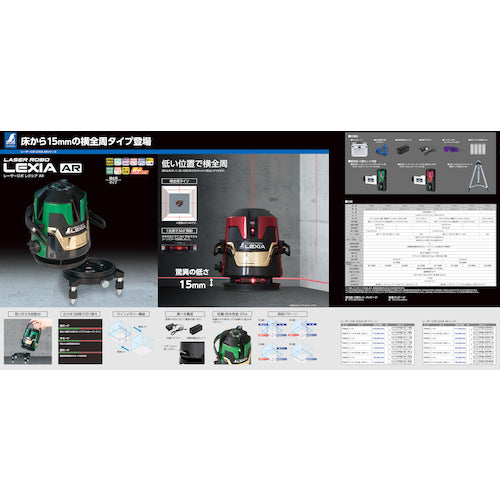

Catalog number: 70863 Features: ●Can emit horizontal lines at a position 15 mm from the floor. ●Light intensity can be switched in three stages. ●High output in strong mode, can be used for a long time in weak mode. Applications: ●For marking out work at construction sites. Specifications: ● Height (mm): 190 ● Width (mm): 128 ● Precision: ±1mm/7.5m ● Automatic correction range: ±3° ● Power supply: Lithium-ion battery ● Protection rating: IP54 ● Light source: Visible semiconductor laser ● Laser safety standard: Class 2 JIS C6802: 2018 ● Braking method: Pendulum + ceramic damper method ● Line width (mm): 5m Weak approx. 1.5mm, medium approx. 1.8mm, strong approx. 2.0mm (mode) ● Right angle precision: 90° ±0.03° ● Wavelength (nm): 513 to 530 ● Power supply (V): Lithium-ion battery ● 2 vertical directions, full horizontal circumference, ground mark Set contents/accessories: ● 4 x AAA alkaline batteries ● AC adapter ● Horizontal adjustment tripod adapter ● Aluminum case ● Lithium-ion battery
