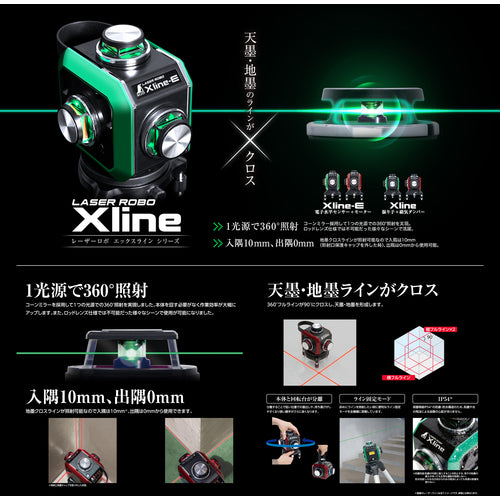

Shinwa Laser Robo Xline Green Receiver and Tripod Set 71618 1 unit

Catalog number: 71618 Features: ●The top and bottom lines are projected in a cross pattern. ●A cone mirror is used to achieve 360° projection with one light source. ●The cross line can project 10mm inside corners and 0mm outside corners. ●In addition, it can be used in various scenes that were not possible with rod lenses. ●There is no need to rotate the main unit, which greatly improves work efficiency. ●The 360° full line crosses at 90° to form the top and bottom lines. ●All models are equipped with a line fixing mode that is convenient when you want to project a line at an angle. ●The pendulum + magnetic damper system can stop the shaking quickly, and the simple structure makes it lightweight. Uses: ●For marking out work in all directions. Specifications: ● Height (mm): 188 ● Width (mm): 127 ● Precision: ±1.5mm/7.5m ● Automatic correction range: ±3° ● Power supply: 4 AA alkaline batteries or AC adapter ● Protection rating: IP54 ● Light source: Visible semiconductor laser ● Wavelength (nm): 510-538 ● Laser safety standard: Class 2 ● Braking method: Magnetic braking method ● Line width (mm): Approximately 2mm at 5m ● Right angle precision: ±0.03° at 90° ● Color: Green ● Width (mm): 127 ● Depth (mm): 182 ● Maximum reach: Approximately 35m (when using laser receiver) ● Continuous use time (all lines irradiated): Approximately 2 hours ● Battery depletion warning: If the power light is turned off during use, When the lamp flashes, the laser light flashes for about 8 seconds when the switch is turned on, and when multiple laser lines are projected and the battery continues to run out, it automatically switches to projecting only the horizontal line. Tilt warning: The laser light flashes when the automatic correction range is exceeded. Standards: Dustproof and waterproof construction (IP54). Compensation: 1 year theft and fire compensation. Power supply (V): 4 AA alkaline batteries or AC adapter. 2 vertical directions, 1 horizontal direction, ground mark. Pendulum + magnetic damper. Indication accuracy (mm): ±1.5 at 7.5m. Output: 1mw or less (JIS class 2). Horizontal line emission angle: 360°. Vertical line emission angle: 360°. Line light width (mm): Approximately 2 at 5m. Material/Finish: ●Body: Brass and aluminum die-cast ●Case: ABS resin Set contents/Accessories: ●Laser level: 71608 ●Receiver: 71501 ●Tripod: 76629 ●4 AA alkaline batteries ●AC adapter ●Level adjustment tripod adapter ●Aluminum case
