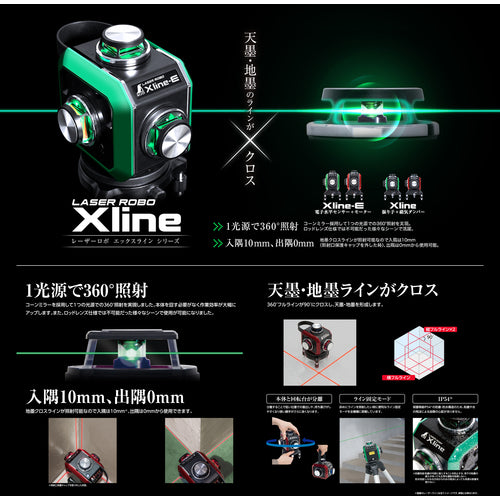

Shinwa Laser Robo Xline-E Green Full Line Ground Marking Cross 71610 1 unit

Catalog number: 71610 Features: ●The top and bottom lines are projected in a cross pattern. ●A cone mirror is used to achieve 360° projection with one light source. ●The cross line can project 10mm inside corners and 0mm outside corners. ●In addition, it can be used in various scenes that were not possible with rod lenses. ●There is no need to rotate the main unit, which greatly improves work efficiency. ●The 360° full line crosses at 90° to form the top and bottom lines. ●All models are equipped with a line fixing mode that is convenient when you want to project a line at an angle. ●The sensor + motor system allows you to quickly determine the line even in work sites with a lot of vibration and shaking. Uses: ●For marking out in all directions. Specifications: ●Height (mm): 213 ●Width (mm): 127 ●Accuracy: ±1.5mm/7.5m ●Automatic correction range: ±4° ●Power supply: 4 AA alkaline batteries or AC adapter ●Protection rating: IP54 ●Light source: Visible semiconductor laser ●Wavelength (nm): 510-538 ●Laser safety standard: Class 2 ●Braking method: Electronic leveling ●Line width (mm): Approximately 2mm at 5m ●Right angle accuracy: ±0.03° at 90° ●Color: Green ●Width (mm): 127 ●Depth (mm): 182 ●Maximum reach: Approximately 35m (when using laser receiver) ●Continuous use time (all lines illuminated): Approximately 2 hours ●Battery depletion warning: During use ：360°ほど直進●軽犯罪で捕まるかも●English: The power lamp will flash, and when the switch is turned on the laser light will flash for approximately 8 seconds. If the batteries become increasingly depleted, automatic leveling will no longer occur and the laser line will flash at approximately 1 second intervals.●Tilt warning: The laser light will flash when the automatic correction range is exceeded.●Standards: Dustproof and waterproof construction (IP54).●Compensation: 1 year theft and fire compensation included.●Power supply (V): 4 AA alkaline batteries or AC adapter.●2 vertical directions, 1 horizontal direction, ground line.●Electronic level sensor + motor.●Indication accuracy (mm): ±1.5 at 7.5m.●Output: 1mw or less (JIS class 2).●Horizontal line emission angle: 360°.●Vertical line emission angle: 360°.●Line light width (mm): Approximately 2 at 5m. Materials/Finish: ●Body: Brass and aluminum die-cast.●Case: ABS resin.Set contents/Accessories: ●AC adapter, level adjustment adapter, aluminum case.●4 AA alkaline batteries.●AC adapter.●Level adjustment adapter.●Aluminum case.Caution: ●Do not look directly into the laser light.
