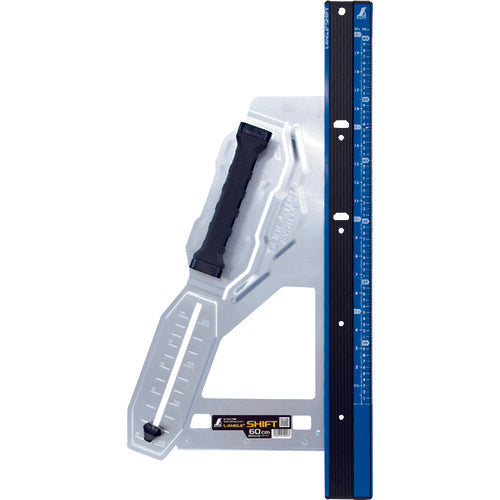

Shinwa Circular Saw Guide Ruler L-Angle Plus Shift 60cm with Dimensional Gradient Cutting Function 79053 1 Unit

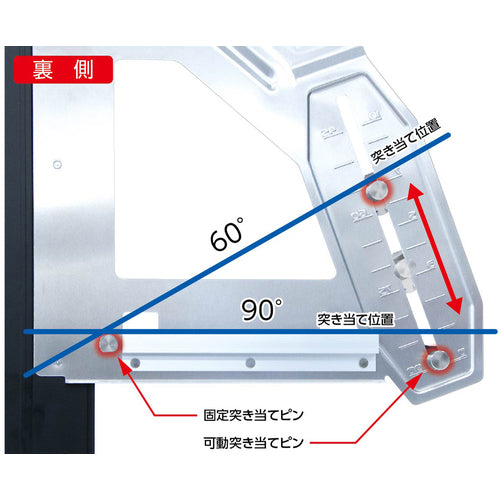

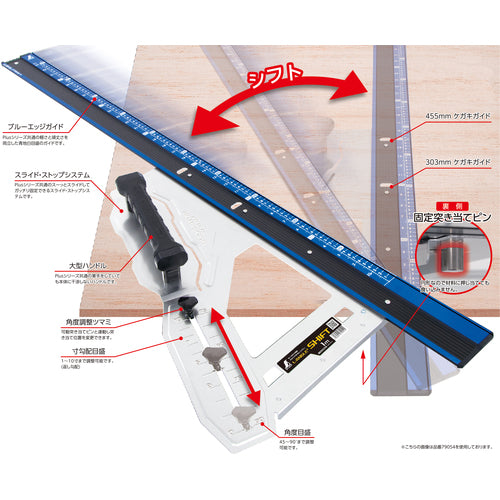

Catalog number: 79053 Features: ●You can shift between right-angle and angle cuts by moving the movable stop pin and changing the stop position. ●The slide-stop system allows for easy sliding and firm fixing, so it slides smoothly and can be fixed firmly. ●It has a wide hex handle that can be gripped firmly. ●It has a scale that combines shaku equivalent scale and metric scale, which is convenient for carpenters. Uses: ●As a cutting guide ruler for electric circular saws, jigsaws, etc. Specifications: ● Total length (mm): 817 ● Width (mm): 390 ● Thickness (mm): 85 ● Nominal dimension (mm): 600 ● Effective cutting length (mm): Right angle 600 ● Angle precision: Less than 0.1 mm per 100 mm ● Stop height (mm): 15 ● Right angle precision: Less than 0.1 mm per 100 mm ● Anti-slip rubber on the back ● Angle adjustment function ● Stop height: 15 mm ● Angle adjustment range: 45 to 90° (1 to 10 inch gradient) Material/Finish: ● Body: Aluminum ● Guide surface, stop pin, pointer: Stainless steel ● Handle: ABS resin, elastomer resin ● Angle adjustment knob: Phenolic resin, brass
