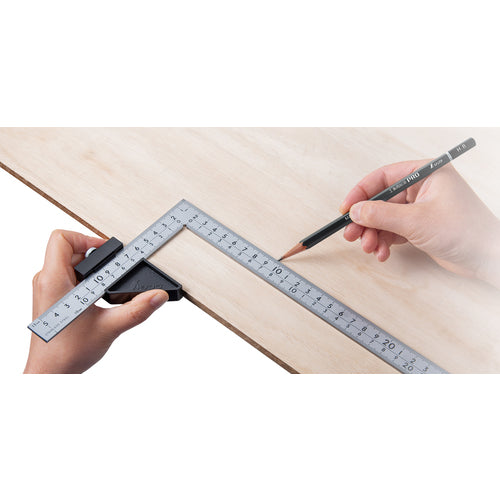

Catalogue number: 12428 Features: ● A stopper that is attached to a thick, wide curved ruler. ● It can draw a marking line parallel to the end face of the material. ● Using the internal scale of the curved ruler, it can be clamped like a vernier caliper for simple measurements. ● Its shape also allows drawing 45° lines. Uses: ● When drawing marking lines. ● For measuring pipe diameters and plate thicknesses. Specifications: ● Short side (mm): 40 ● Width (mm): 14 ● Thickness (mm): 14 ● Total length (mm): 75 ● Compatible curved ruler size, thickness: 2mm, width: 20mm ● Stopper angle precision, less than 0.2mm per 100mm Materials/Finish: ● Body: ABS resin, screws: iron, leaf spring: copper
