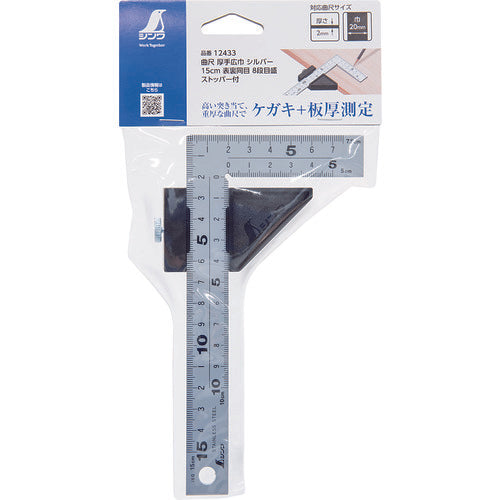

Shinwa Curved Ruler, Thick and Wide, Silver, 15cm, Same Markings on Both Sides, 8 Levels, with Stopper, 12433, 1 Piece

Catalog number: 12433 Features: ●The high stopper and heavy, thick, wide width of the curved ruler allow you to draw long, stable marking lines. ●Using the internal scale of the curved ruler, you can simply clamp it like a vernier caliper for measurements. ●By changing the stopper position, you can draw 45° marking lines. Applications: ●When drawing marking lines. ●For measuring pipe diameters and plate thicknesses. Specifications: ● Long side (mm): 170 ● Short side (mm): 85 ● Width (mm): 20 ● Thickness (mm): 14 ● Scale specifications: cm scale ● Length tolerance: ±0.2mm ● Straightness: 0.1mm or less per 100mm ● Total length (mm): 170 ● Type: Resin stopper ● Compatible ruler size: Thickness 2.0mm or less, width: 20mm ● Stopper angle precision: 0.2mm or less per 100mm ● Ruler specifications conform to our product number 10424 Material/Finish: ● Ruler: Stainless steel ● Stopper body: ABS resin, screw: iron, leaf spring: copper Set contents/Accessories: ● Ruler thick and wide 15cm (10424) ● 1 stopper for ruler
