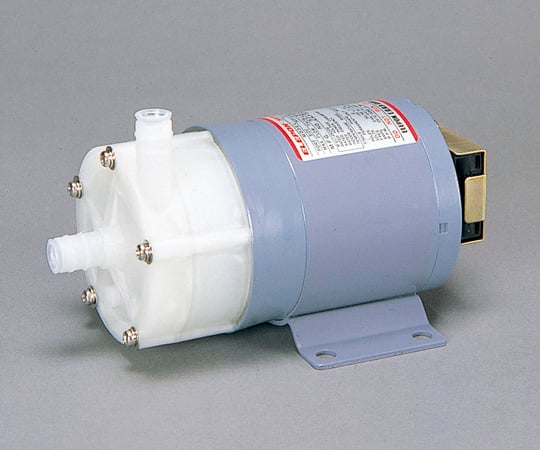

Sealless pump SL-2S 1 unit

The magnetic drive system prevents liquid leakage from the pump casing. A wide variety of options allows for detailed selection. The main material used is PP (polypropylene), which has excellent corrosion resistance. The simple structure with few parts makes maintenance easy. Model number: SL-2S Connection diameter (inner diameter of hose used): Method/hose, suction side/φ12, discharge side/φ12 Maximum flow rate (50/60Hz): 15/19L/min Maximum lifting height (50/60Hz): 2.4/3.4m Flow rate (50/60Hz) (head): 8/13L/min (1.5m) Motor: Rated output: 15W, Power supply: 100V single phase Weight: 2.0kg Wetted parts material: Casing/PP+GF, Impeller/PP+GF, Bearing/Rareflon, Pump shaft/Ceramic, Thrust bearing/Ceramic, O-ring/FKM *At the rated performance point, the maximum specific gravity of the liquid used is 1.1, and the maximum viscosity is 30 mPa･S. *Motor type: Totally enclosed self-cooling type
