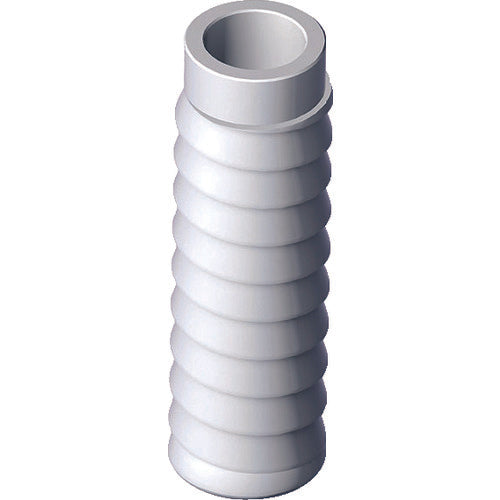

Japan Life FCI-A Insert M12A*65 (40 pieces) 1100429-C01 1 box

Catalog number: 1100429-C01 Features: ● Made of high-purity alumina ceramic, it will not rust. ● High insulation and fire resistance, and can withstand contact corrosion between dissimilar metals and fires. Applications: ● For mounting on racks for information boxes, etc. ● For scaffolding in PC bridge construction work. ● As an insert in places requiring rust prevention and insulation. Specifications: ● Outer diameter (mm): 22 ● Total length (mm): 65 ● Drilled hole diameter (φ): 25 ● Drilled hole length (mm): 70 ● Resin amount (cc): 10 ● Thread size: M12 ● Main body threaded part: Complies with JIS B1021 C grade Material/Finish: ● High-purity alumina ceramic
