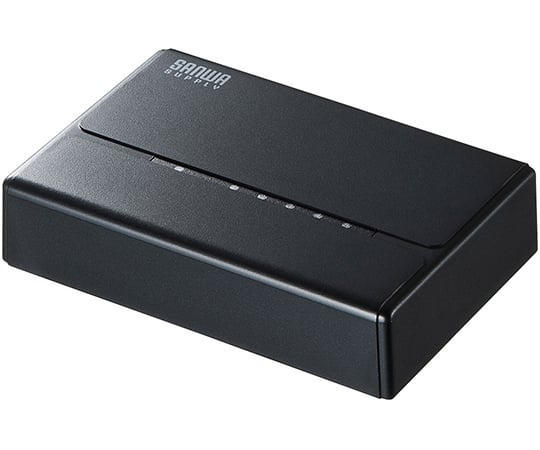

Switching Hub 5 Ports with Magnet LAN-SWHP501BK 1 Piece

A 10/100BASE-T compatible switching hub with a magnet that can be fixed to a steel desk, etc. This is a 5-port switching hub that supports 100BASE-TX. Equipped with a powerful magnet, it can be firmly attached to steel desks, cabinets, etc. The compact design with a plastic case means it can be installed anywhere. Since it is fanless, it operates quietly. It is equipped with an AUTO-MDIX function that allows you to use it without worrying about whether you are using a straight cable or a cross cable. It is equipped with an AUTO-Negotiation function that can automatically switch between 10/100Mbps depending on the connected device. Equipped with a power saving function that automatically detects unlinked ports and reduces power supply. If you shut down the computers on all ports, you can save up to 63% of power. The power supply is an AC adapter and a tracking fire prevention cap is already attached. [Caution] ・The amount of heat generated by this product differs between when it is only powered and when it is communicating. ・The main unit may overheat, especially if a large amount of communication is performed continuously. ・Continuous use in an environment with little ventilation and poor heat dissipation may cause deterioration of internal parts and shorten the product life. ・When using, do not place anything on top of the main unit and leave a space of 10 cm or more around the ventilation opening. Number of ports: 5 ports Standards: IEEE802.3 (10BASE-TEthernet) IEEE802.3u (100BASE-TXFastEthernet) IEEE802.3x (FlowcontrolforFull-Duplex) Access method: CSMA/CD Switching method: Store & Forward Transmission method: 100Mbps/10Mbps (full duplex, half duplex) Port configuration: 100BASE-TX/10BASE-T (RJ-45) AUTO-MDIX x 5 ports Buffer memory: 56Kbytes (dynamically allocated to each port) Flow control: Yes Switching fabric: 1.0Gbps Maximum packet forwarding capacity: 1.488Mpps Filtering speed: 148800 packets/sec (100Mbps), 14880 packets/sec (10Mbps) MAC address table: 1024 AutoMDI/MDI-X: Supported Auto-negotiation: Supported (100/10Mbps) Body size: Approx. W99.1 x D66 x H25.5mm Wall hanging hole size: Approx. W19.9 x D8 x H3.4mm AC adapter cable length: Approx. 150 cm (excluding connector) Power consumption (MAX): 0.83W Operating environment: Operating temperature: 0 to 40°C Operating humidity: 10 to 90% (no condensation) Storage temperature: -20 to 70°C Storage humidity: 5 to 90% (no condensation) Country of Origin: China Instruction manual: Yes Warranty period: 1 year from date of purchase
