Sugito Microscope Adapter Basic Set TS-MS-01 1 S

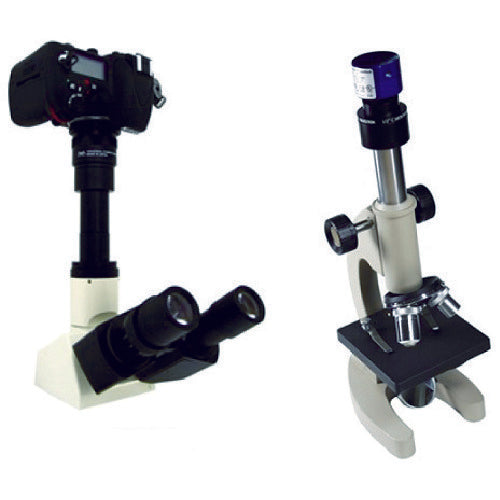

Catalog number: TS-MS-01 Features: ●Basic set of microscope photography adapters that allows you to attach a CCD camera to any microscope. ●High-performance lenses designed with reliable Japanese technology correct aberrations, allowing you to observe and photograph every corner clearly. ●Commercially available scales (sold separately) can also be attached, allowing you to measure the object being observed. ●The structure allows for fine focus adjustments, solving the problem of not being able to focus when an adapter is attached. Applications: ● Can be attached to the binocular tube (φ23.2mm) of a normal biological microscope or metal microscope, the binocular tube (φ30mm) of a stereo microscope, or the trinocular tube (C mount), so it can be attached to most microscopes and used for photography. Specifications: ● Magnification (times): 1.9 ● Lens configuration: 5 groups, 8 elements ● Optical magnification: 1.9X ● Focal length: f=92.53mm ● Numerical aperture: NA=0.025 (covers the numerical aperture of all objective lenses) ● Flatness: Planarity 90% or more (more than 90% of the shooting screen is in focus) ● Commercially available scale φ19 can be attached ● 2/3 C-mount camera adapter (TS-0155H) (sold separately), 1 C-mount camera adapter (TS-0156H) (sold separately) Material/Finish: ● Lens part: Glass ● Tube part: Aluminum Set contents/accessories: ●Microscope adapter body ●Adapter for 1/2 inch CCD camera ●Conversion adapter for C-mount telescope tube ●Conversion adapter for 30 mm telescope tube ●Hex wrench (1.27) ●Flathead screwdriver (2.4) ●Storage box Note: ●Scale is sold separately.
