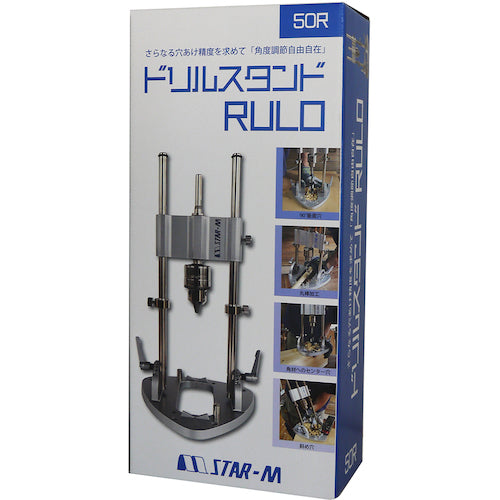

Catalog number: 50R Features: ● Freely adjustable angle. ● Attachable drills can be attached to drills with a size of 57 mm or less, a total length of 220 mm or less, and a shaft diameter of 1.5 mm to 13 mm. Applications: ● Vertical holes at 90 degrees, round bar processing using V-grooves, center holes in square timber, diagonal holes, holes for dowel joints of a certain depth, and making plugs. Specifications: ● Suitable drills: drill diameter 57 mm or less, total length 220 mm or less, shank diameter 1.5 to 13 mm ● Shaft diameter (mm): 10 three grooves ● Total length (mm): 367.5 ● Width (mm): 198 ● 13 mm drill chuck ● Maximum stroke 220 mm ● Maximum tilt angle 45 degrees ● Suitable models: drill driver, electric drill Material/Finish: ● Aluminum die-cast Set contents/Accessories: ● Chuck key chain ● Chuck ● Chuck handle Caution: ● The angle scale is a guide. ● Fix the main body base firmly with a clamp or by hand. ●Please note that the main unit may tip over if it is held at an angle. ●Please wear protective gear when working. ●Before use, be sure to securely tighten the drill chuck, cam lever, and stopper ring.
