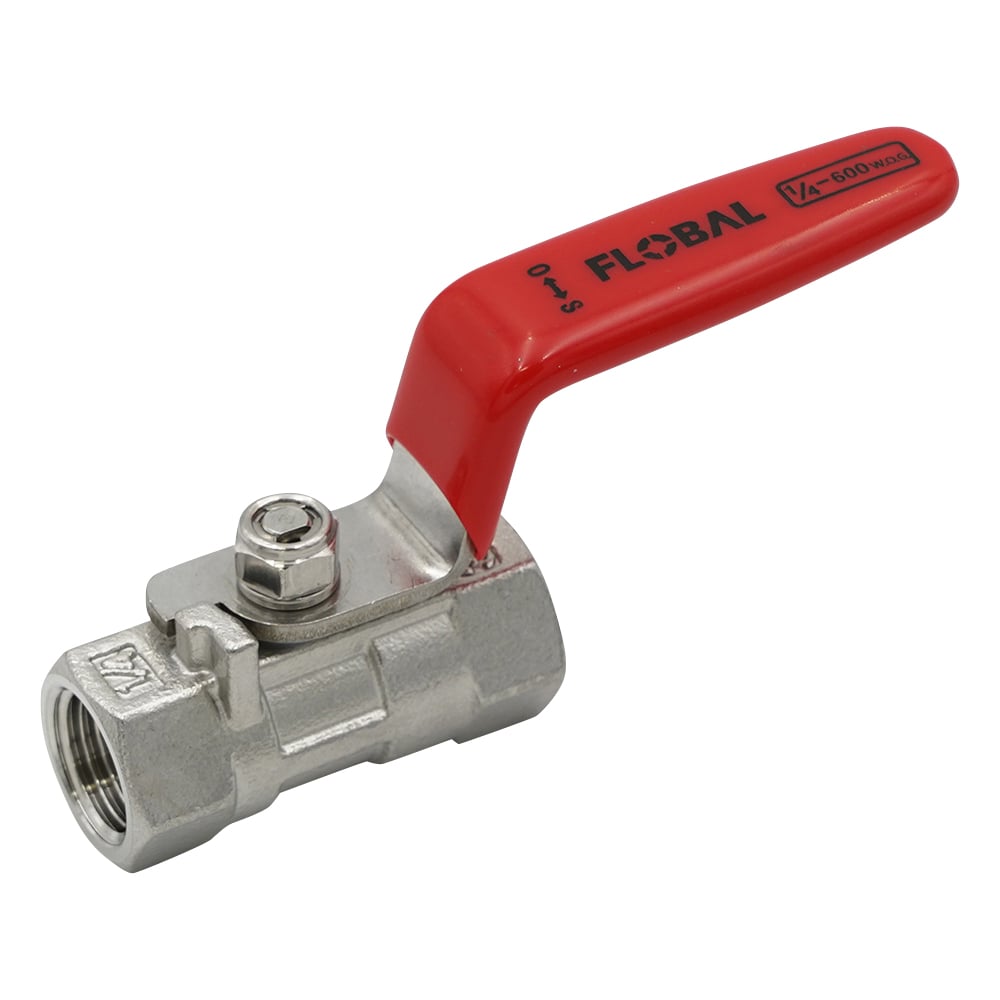

Stainless steel ball valve (connection standard 1/4Rc) V03-304-02 1 piece
Stainless steel ball valve (connection standard 1/4Rc) V03-304-02 1 piece
Regular price
¥3,069
Regular price
Sale price
¥3,069
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Equivalent to SUS304, Class 600 reduced ball valve Model number: V03-304-02
Connection standard (Rc): 1/4
Body material: Stainless steel (SCS13A)
Maximum allowable pressure: Room temperature water, oil, gas/4.12MPa, saturated steam/0.5MPa
Sheet leak inspection pressure: Air pressure 0.59MPa (according to JIS B 2003)
Operating temperature range: -20 to 200°C (no freezing)
