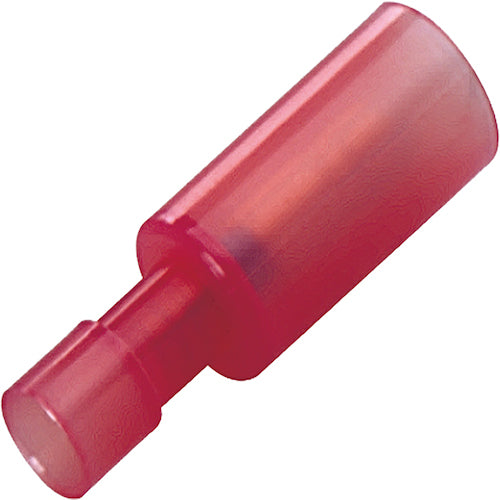

Catalog number: EBNF18-4FIM-Q Features: ● Male bullet terminal insulated with nylon. ● No need to attach an insulating cover such as a sleeve. Applications: ● For intermediate connection terminals. Specifications: ● Wire clamping range Stranded wire (mm2): 0.5 to 1.5 ● Wire clamping range AWG: 22 to 16 ● Color: Red ● Total length (mm): 26.8 ● Inner dimensions (mm): 3.9 ● Maximum operating temperature (℃): 85 ● Rated voltage (V): 600 ● Male Material/Finish: ● Terminal: Copper ● Insulation: Nylon Note: ● This product cannot be canceled.
