Stronghold nylon fully insulated crimp terminal, male type, wire size: AWG12-10/3.5-5.5sq, 250 tabs, 25 pieces, EDNF10250FIMB-Q, EDNF10250FIMB-Q, 1 bag

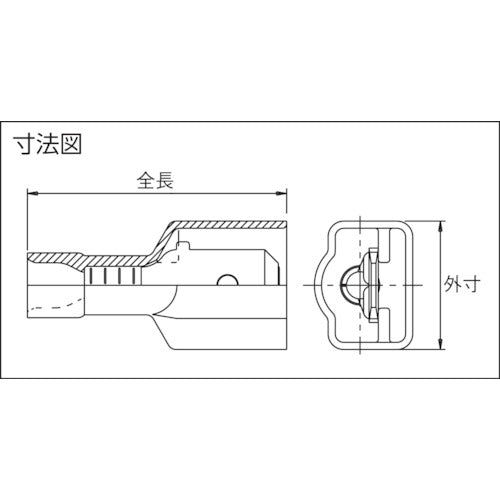

Catalog number: EDNF10250FIMB-Q Features: ● Male crimp terminal insulated with nylon. ● No need to attach an insulating cover such as a sleeve. Applications: ● For connecting electric wires. Specifications: ● Wire clamping range Stranded wire (mm2): 4.0 to 6.0 ● Wire clamping range AWG: 12 to 10 ● Color: Yellow ● External dimensions (mm): 11.4 ● Total length (mm): 24.4 ● Maximum operating temperature (°C): 125 ● Rated voltage (V): 600 ● Tab size: .250 x .032 ● Recommended stripping length (mm): 9.5 ● External dimensions (mm): 11.4 ● Recommended stripping length (mm): 9.5 Material/Finish: ● Body: Copper ● Coating: Nylon
