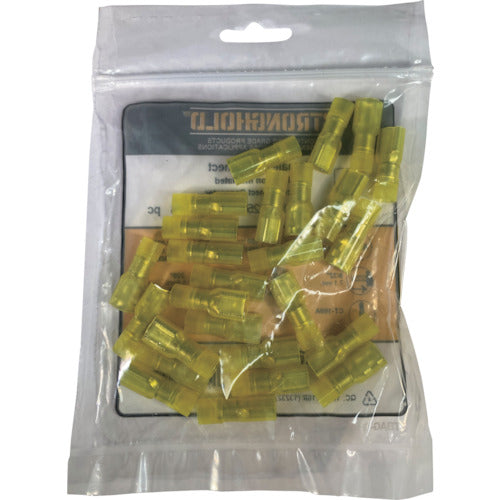

Stronghold nylon fully insulated crimp terminal, female type, wire size: AWG12-10/3.5-5.5sq, for 250 tabs, 25 pieces, EDNF10-250FI-Q, EDNF10-250FI-Q, 1 bag

Catalog number: EDNF10-250FI-Q Features: ● Female crimp terminal fully insulated with nylon. ● No need to attach an insulating cover such as a sleeve. Applications: ● For connecting electric wires. Specifications: ● Wire clamping range Stranded wire (［［MM2］］): 4.0 to 6.0 ● Wire clamping range AWG: 12 to 10 ● Color: Yellow ● External dimension (mm): 9.1 ● Stud diameter (mm): None ● Total length (mm): 24.1 ● Internal dimension (mm): None ● Shape: Female ● JIS standard product: None ● Maximum operating temperature (℃): 125 ● Rated voltage (V): 600 ● Tab size: .250 x .032 ● Compatible tab size: .250 x .032 ● Recommended stripping length (mm): 7.1 ● External dimensions (mm): 9.1 ● Recommended stripping length (mm): 7.1 Material/Finish: ● Body: Copper ● Coating: Nylon
