Stronghold nylon fully insulated crimp terminal, female type, wire size: AWG16-14/1.25-2sq, for 250 tabs, 25 pieces, EDNF14-250FIB-Q, EDNF14-250FIB-Q, 1 bag

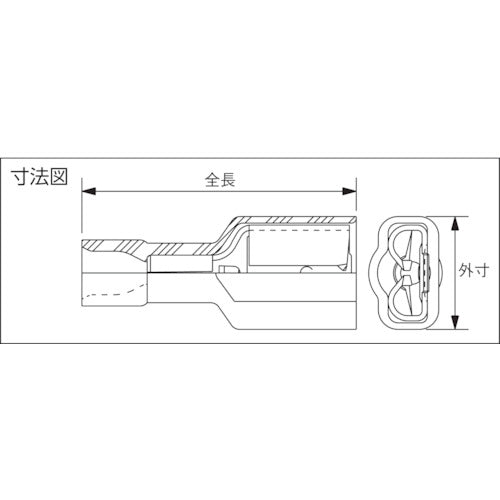

Catalog number: EDNF14-250FIB-Q Features: ● Female crimp terminal fully insulated with nylon. ● No need to attach an insulating cover such as a sleeve. Applications: ● For connecting electric wires. Specifications: ● Wire clamping range Stranded wire (mm2): 1.5-2.5 ● Wire clamping range AWG: 16-14 ● Color: Blue ● External dimension (mm): 8.9 ● Stud diameter (mm): None ● Total length (mm): 21.3 ● Internal dimension (mm): None ● Shape: Female ● JIS standard product: None ● Maximum operating temperature (℃): 125 ● Rated voltage (V): 600 ● Tab size: .250 x .032 ● Recommended stripping length (mm): 7.1 ● External dimension (mm): 8.9 ● Recommended stripping length (mm): 7.1 Material/Finish: ● Body: Copper ● Coating: Nylon Note: ● This product cannot be canceled.
