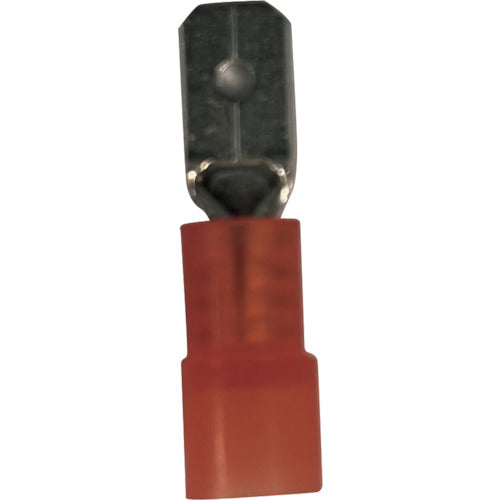

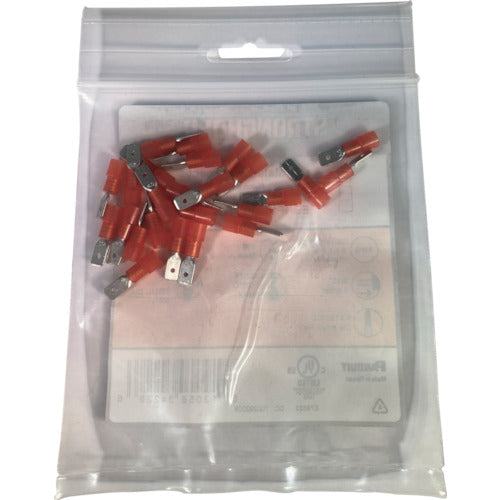

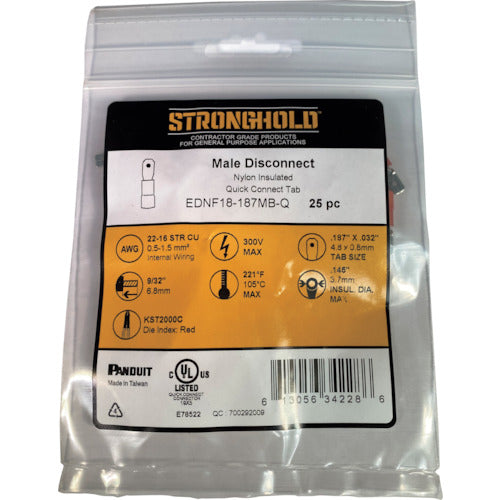

Stronghold nylon insulated crimp terminal, male type, wire size: AWG22-16/0.3-1.25sq, 187 tabs, 25 pieces, EDNF18-187MB-Q, EDNF18-187MB-Q, 1 bag

Stronghold nylon insulated crimp terminal, male type, wire size: AWG22-16/0.3-1.25sq, 187 tabs, 25 pieces, EDNF18-187MB-Q, EDNF18-187MB-Q, 1 bag

JAN：0613056342286 　
Connection terminals Electrical wiring parts Electronics Insulated crimp terminal Stronghold Electrical Equipment
¥620
¥620
Sale Sold out
Shipping calculated at checkout.

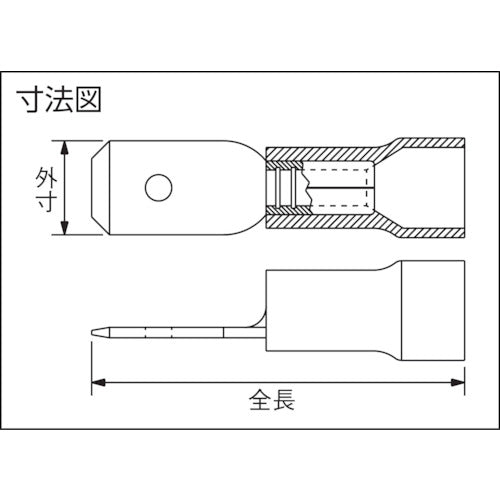

Catalog number: EDNF18-187MB-Q Features: ● Nylon insulated male crimp terminal. Applications: ● For connecting electric wires. Specifications: ● Wire clamping range Stranded wire (mm2): 0.3-1.25 ● Wire clamping range AWG: 22-16 ● Color: Red ● External dimension (mm): 4.8 ● Total length (mm): 20.0 ● Internal dimension (mm): 3.7 ● Maximum operating temperature (°C): 105 ● Rated voltage (V): 300 ● Tab size: .187 x .032 ● Recommended stripping length (mm): 7.1 ● External dimension (mm): 4.8 ● Recommended stripping length (mm): 7.1 Material/Finish: ● Terminal: Copper ● Insulation: Nylon Note: ● This product cannot be canceled.
