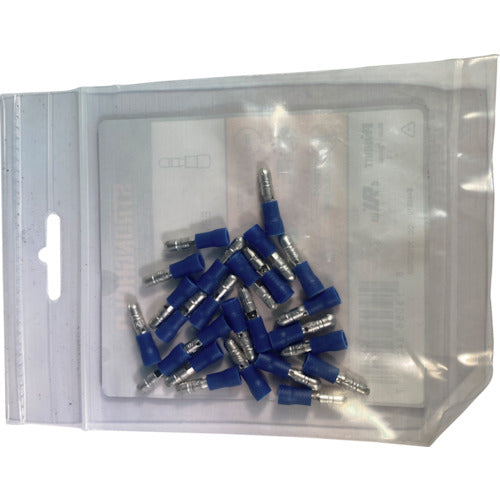

Stronghold Vinyl-insulated male terminal Wire size: AWG16-14/1.25-2sq Terminal width 3.9mm 25 pieces EBV14-4MB-Q EBV14-4MB-Q 1 bag

Catalog number: EBV14-4MB-Q Features: ● Male type Gibushi terminal insulated with vinyl. Uses: ● For connecting electric wires. Specifications: ● Wire clamping range Stranded wire (［［MM2］］): 1.5 to 2.5 ● Wire clamping range AWG: 16 to 14 ● Color: Blue ● External dimensions (mm): 4.0 ● Total length (mm): 21.0 ● Compatible female Gibushi size (mm): 3.9 ● Type: M type ● External dimensions (mm): 4.0 ● Recommended stripping length (mm): 6.8 ● Maximum operating temperature (℃): 50 ● Rated voltage (V): 600 ● Maximum operating temperature: 50℃ ● Rated voltage (V): 600V Material/Finish: ● Body: Copper ● Coating: Vinyl Note: ● This product cannot be canceled.
