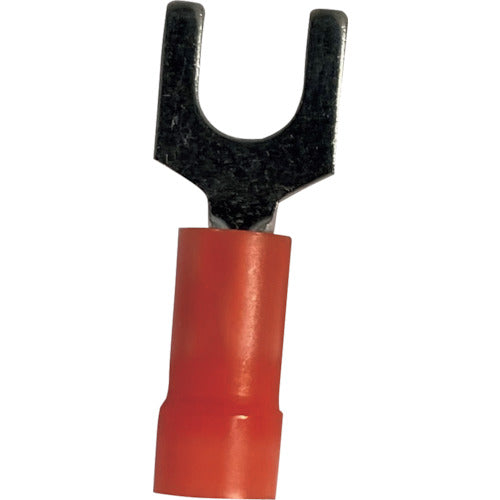

Stronghold Vinyl insulated crimp terminal (open tip) Wire size: AWG22-16/0.3-1.25sq Mounting screw: M6 25 pieces EV18-14FB-Q EV18-14FB-Q 1 bag

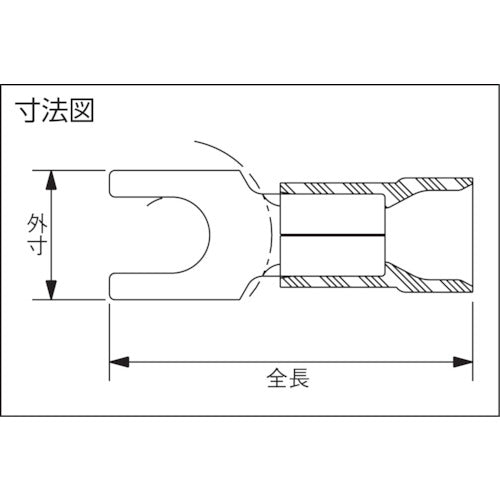

Catalog number: EV18-14FB-Q Features: ● Open-tip crimp terminal with vinyl insulation coating. ● One side of the mounting hole is open, so it can be installed without completely removing the screw. Applications: ● For connecting electric wires. Specifications: ● Wire clamping range Stranded wire (［［MM2］］): 0.5 to 1.5 ● Wire clamping range AWG: 22 to 16 ● Color: Red ● External dimension (mm): 9.4 ● Stud diameter (mm): None ● Total length (mm): 21.1 ● Internal dimension (mm): 3.7 ● Shape: Open tip ● JIS standard product: None ● Maximum operating temperature (℃): 125 ● Rated voltage (V): 600 ● Recommended stripping length (mm): 6.8 ● External dimensions (mm): 9.4 ● Mounting screw: M6 ● Recommended stripping length (mm): 6.8 ● Maximum operating temperature: 105℃ Material/Finish: ● Body: Copper ● Coating: Vinyl
