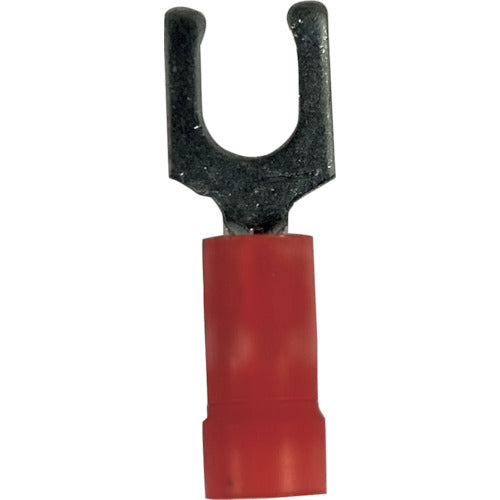

Stronghold Vinyl Insulated Crimp Terminal (Anti-pullout Type, Open Tip) Wire Size: AWG22-18/0.3-0.75sq Mounting Screw: M3 25 Pieces EV18-6LFB-Q EV18-6LFB-Q 1 Bag

Catalog number: EV18-6LFB-Q Features: ●An open-ended crimp terminal with vinyl insulation to prevent it from coming loose. ●The tip of the mounting hole juts out inward, so it is designed to be difficult to come off even if the screw that secures the terminal becomes loose. Applications: ●For connecting electric wires. Specifications: ● Wire clamping range Stranded wire ([MM2]): 0.5 to 1.0 ● Wire clamping range AWG: 22 to 18 ● Color: Red ● External dimension (mm): 6.9 ● Stud diameter (mm): 3.6 ● Total length (mm): 22.9 ● Internal dimension (mm): 3.81 ● Maximum operating temperature (℃): 105 ● Rated voltage (V): 600 ● Recommended stripping length (mm): 7.9 ● External dimensions (mm): 6.9 ● Mounting screw: M3 ● Recommended stripping length (mm): 7.9 ● Maximum operating temperature: 105℃ ● Rated voltage: 600V Material/Finish: ● Body: Copper ● Coating: Vinyl
