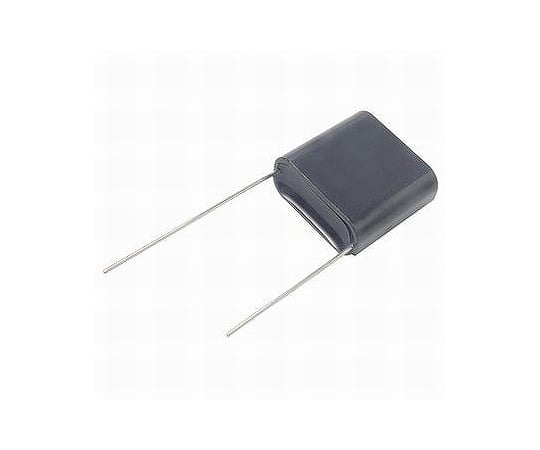

Spark Killer 0.1μF+120Ω S1201 1pc

This prevents sparks from burning the contacts or affecting the surrounding area when the power switch or relay contacts are turned ON/OFF. Inside, a capacitor and resistor are connected in series, and by placing this element in parallel with the contacts, it absorbs the energy of the spark. It is commonly used for AC100V power switches. Mounting: Lead terminal Rated voltage: 150V-AC Capacitance: 0.1μF±20% Resistance: 120 (1/4W) Ω ±30% Peak value: 650Vmax Superimposed pulse conditions/pulse width: 50msec.max Superimposed pulse conditions/repetition frequency: 120Hz max Superimposed pulse conditions/pulse width x frequency: 3max Maximum applied voltage: 700V External dimensions: WH 16mm x 16mm
