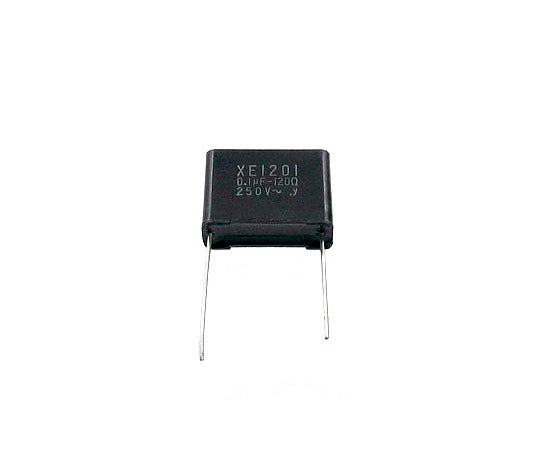

Spark Killer 0.1μF+120Ω XE1201 1pc

This prevents sparks from burning the contacts or affecting the surrounding area when the power switch or relay contacts are turned ON/OFF. Inside, a capacitor and resistor are connected in series, and by connecting this element in parallel with the contacts, it absorbs the energy of the spark. It is commonly used in AC 100V power switches. Mounting: Lead terminal Rated voltage: 250V-AC Capacitance: 0.1μF±20% Resistance: 120 (1/2W) Ω ±30% Peak value: 800Vmax Superimposed pulse conditions/pulse width: 50msec.max Superimposed pulse conditions/repetition frequency: 120Hz max Superimposed pulse conditions/pulse width x frequency: 0.45max Maximum applied voltage: 1200V External dimensions: WH 23.5mm x 17.5mm Note: Acquired major overseas standards
