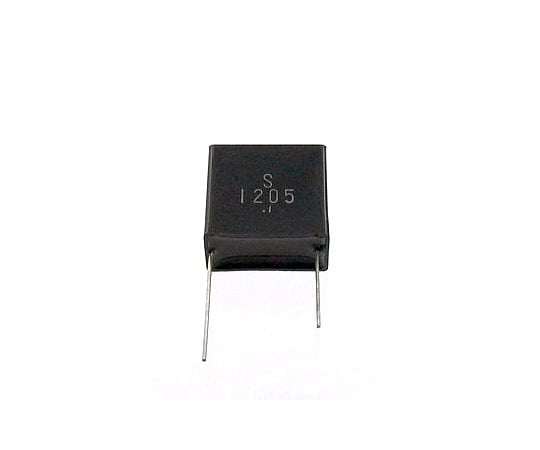

Spark killer 0.5μF±20% S1205 1 piece

It's a spark killer. It prevents the contacts from burning or affecting the surroundings due to sparks when the contacts of power switches and relays are turned on and off. Inside, a capacitor and resistor are connected in series, and by placing this element in parallel with the contacts, it absorbs the energy of the sparks. It is used as standard in AC100V power switches. It comes with coated lead wires and a mounting band, so it can be screwed to the chassis. Mounting: Lead terminal Rated voltage: 150V-AC Capacitance: 0.5μF±20% Resistance: 120 (1/2W) Ω ±30% Peak value: 650Vmax Superimposed pulse conditions/pulse width: 50msec.max Superimposed pulse conditions/repetition frequency: 120Hz max Superimposed pulse conditions/pulse width x frequency: 0.5max Maximum applied voltage: 700V External dimensions: WH 23mm x 22.5mm
