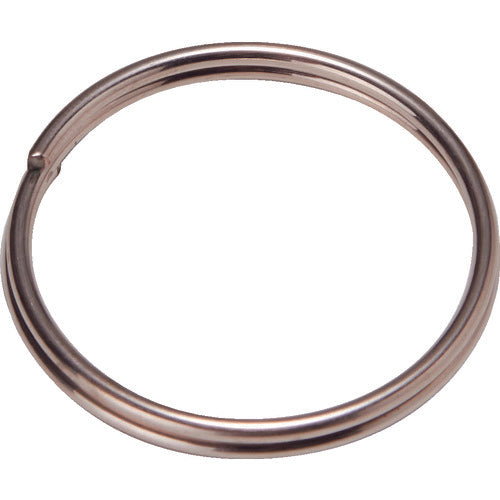

Superior Brazing Ring NS-6F 1.6X Inner Diameter 28.8 500g NS-6F-1.6X28.8-IN-2W 1 bag

Catalog number: NS-6F-1.6X28.8-IN-2W Features: ●High fluidity, so it flows easily into gaps. ●Melting point: 640℃ to 720℃ Applications: ●Ring shape suitable for joining copper and copper alloy pipes. Specifications: ●Wire diameter (mm): 1.6 ●Melting point (℃): 640 to 720 ●Material: Copper: 86.8%, phosphorus: 7.2%, silver: 6% ●Fluidity/standard: Slow/equivalent to BCuP-4 ●Melting point: 640 to 720℃ ●JIS standard BCup-4 equivalent Material/Finish: ●Cu remaining/R P7.2 Ag6 Caution: ●Do not use for purposes other than brazing. ●Do not inhale smoke (fumes). ●Wash hands thoroughly after handling. ●When dust and fumes are generated during high-heat processes such as brazing, use a general ventilation system as well as a local ventilation system. ●Wear appropriate protective equipment depending on the work content. ●Be sure to read the safety data sheet (SDS) before use.
