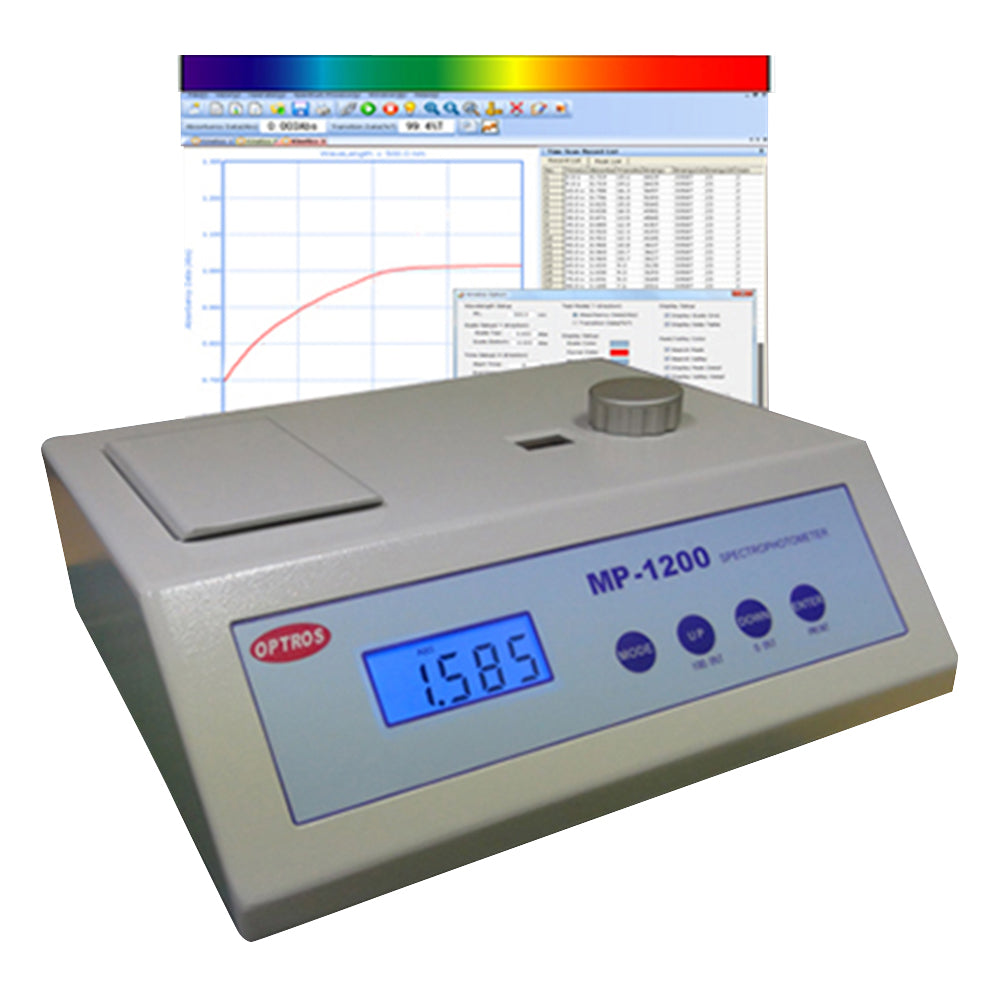

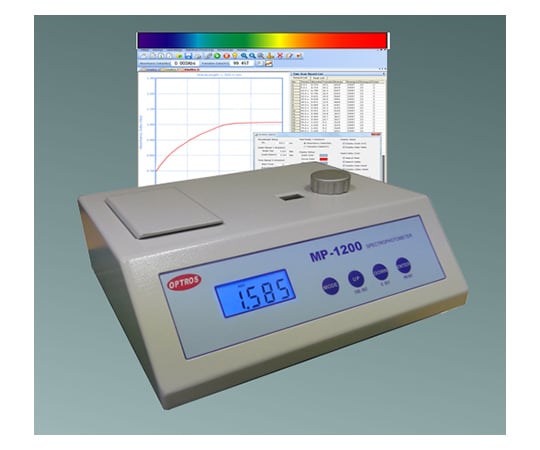

Smart spectrophotometer MP-1200 1 set

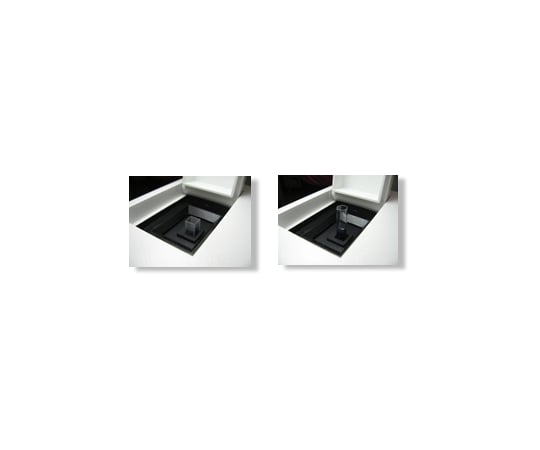

Standard square cells and regular test tubes (outer diameter Φ12/16.5-18mm) can be used for measurement. Easy-to-read large LCD backlight display By connecting to a PC with optional software, non-linear sample concentrations can be measured with high precision. Concentration calibration curves and measurement data can be saved and edited. Measurement items include absorbance ABS, transmittance %T, and concentration CONC factor value input, as well as control from the PC, real-time graphing using kinetic measurements, and display, save, and edit each measurement value. When calculating concentration values, the calibration curve can be selected from three types: Piecewise broken line, Linear first-order regression (C=a+bA), and Quadratic second-order regression (C=a+bA+cA2). Calibration curves for non-linear samples are automatically created and displayed in graph form. The calibration curve can be stored in memory, so next time you can call up the item you want to measure and immediately measure, display, save, and edit the sample concentration value. Each saved data can be converted to text or Excel format and edited and saved. Wavelength setting range: 340 to 1000 nm Wavelength accuracy: ±2nm Wavelength repeatability: ≤1.0nm Wavelength width: 6nm Photometric accuracy: ±2T% Diffraction grating: 1200/mm Transmittance repeatability: ≤0.5T% Stray light: ≤1.0T% Detector: High sensitivity silicon photocell Light source: High-intensity halogen lamp (6V, 10W) Spectrometer: Grating (1200 lines/mm) Measurement range: Absorbance/-0.301 to +3.000, Transmittance/0.0 to 200.0T%, Concentration/0.000 to 2000C (select from 3 calibration curves) (mg/dl, mg/l, g/l, ppm, M) Usable test tube dimensions Diameter φ16.5-18mm x length 55-160mm * When using the included common adapter Square cell width 10mm x depth 10mm x length 45-150mm Test tube diameter φ12 × length 55-150mm Display: 65×26mm 4 1/2 LCD Power supply: AC100~220V 50~60Hz (±10%) Power: 25W Fuse: 1A Interface: PC-USB Dimensions: L320 x W290 x H120mm Weight: 4.2Kg Accessories: Instruction manual, power cord, dust cover, light shielding cap, glass square cell x 2, fuse 1A Product code: 32-5000
