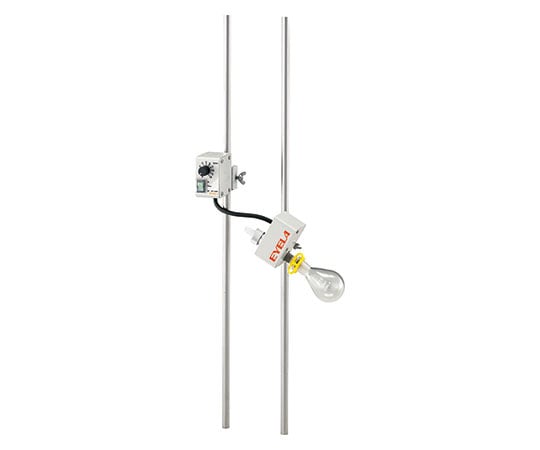

Small evaporator SE-1000 1 unit

Compact type that can be installed in a small space This is a small rotary evaporator dedicated to concentrating small volumes of 10 to 300 mL. Rotation speed range: 5 to 110 rpm Evaporation capacity: Max. 5mL/min Rotation setting and display: Volume type, analog scale Safety features: Current limiting circuit, fuse Rotation motor: Stepping motor Cooler: Sold separately Sample flask: Sold separately (10 to 300 mL available) Rotary joint: Inner diameter 6 x total length 96 mm TS15/25 Vacuum seal: Oil seal (Teflon(R)) Connection diameter: Suction nozzle outer diameter 10 mm Ambient temperature range: 5 to 35°C External dimensions: Drive unit/40(122) x 60(96) x 72 mm, Operation unit/40 x 60(100) x 65 mm / *Dimensions in parentheses include protrusions. Weight: 0.75kg Power input/power voltage: 0.15A, 15VA, AC100V 50/60Hz *Performance values ​​are measured at room temperature of 20°C and rated power supply voltage. *A vacuum pump, cooling water circulator, etc. are required for use. Code: 256760
