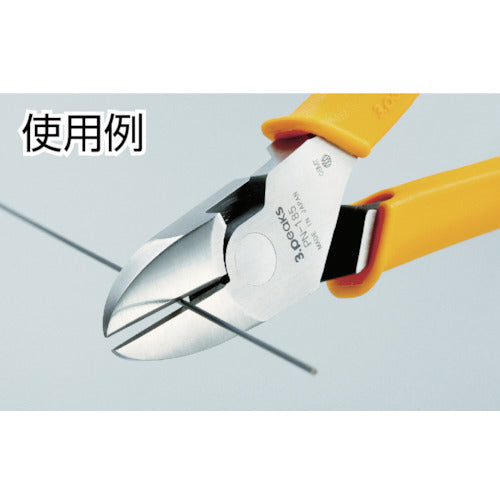

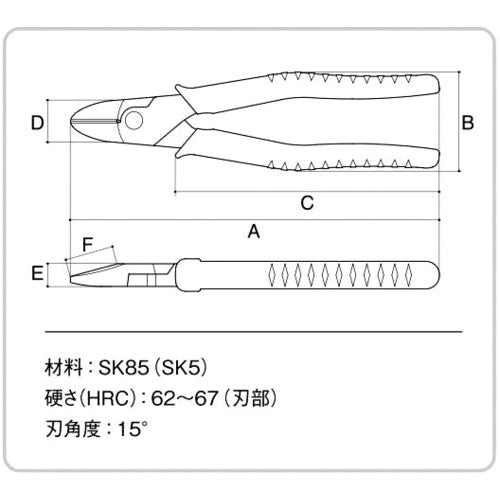

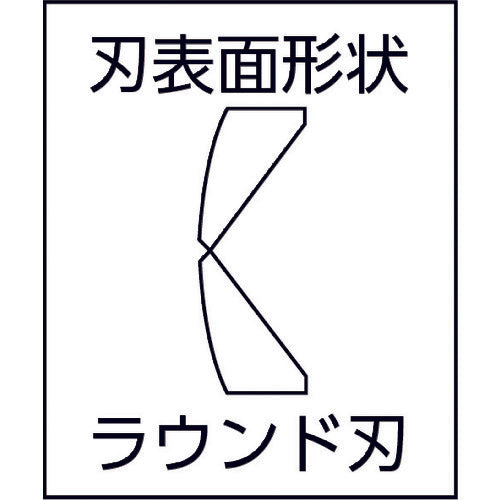

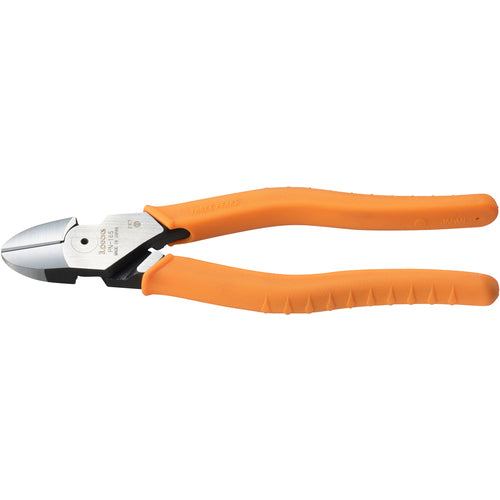

Catalog number: PN165 Features: ●Can also cut piano wire and hard steel wire. ●Powerfully cuts piano wire and hard steel wire by applying the principle of leverage. Applications: ●Construction industry. ●Electrical work. Specifications: ● Total length (mm): 168 ● Blade surface shape: Round blade ● Cutting capacity (mm) Soft iron wire: ○ ● Cutting capacity (mm) ABS resin: ○ ● Cutting capacity (mm) Stainless steel: φ1.0 ● Cutting capacity (mm) Piano wire: φ1.0 ● Cutting capacity (mm) Hard wire: ○ ● Cutting capacity (mm) Iron wire: φ1.90 ● Cutting capacity (mm) Copper wire: φ3.2 ● Cutting capacity (mm) VA wire: 1.6 x 2 cores ● Cutting capacity (mm) Copper stranded wire: 5.5 ● Drop prevention string attachment hole: None ● Cutting capacity (mm) VA wire (VVF) φ1.6 x 2 cores ● Dimensions (mm) A = 168 / B = 49.5 / C = 122 / D = 21 / E = 11 / F = 20.5 ● Round blade Material / Finish: ● Carbon tool steel ● Grip: Elastomer resin Caution: ● Never conduct electricity. This is a non-insulated tool. ●Do not use as a hammer. ●Do not use beyond the intended range of use.
