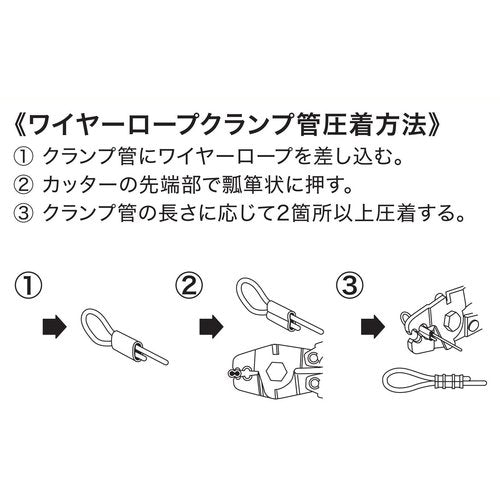

Catalog number: WCC-200 Features: ● Cuts wire rope with two blades on the left and right, and crimps various clamp tubes (aluminum tubes or oval sleeves) with the tip hole. Uses: ● For fastening and connecting wire ropes. Specifications: ● Cutting capacity (mm) Wire: φ1.5 ● Total length (mm): 213 ● Clamp tube crimping capacity: 0.10-1.0mm (WCC-200), 0.27-1.5mm (WCC-250), 1.5-2.0mm (WCC-250-2H) ● Comes with kick spring ● Comes with a string attachment hole to prevent falling (WCC-250 only) ● Comes with handle lock function ● Comes with adjustment screws for the blade tip (both ends) Material/Finish: ● Blade: Vanadium steel ● Handle: Carbon steel ● Grip: Vinyl (not included with WCC-250) Caution: ● Never conduct electricity (non-insulated tool). ●Please be careful when cutting the end of the wire rope as scraps from the wire rope may get stuck in the tool. ●Please follow the instructions for cutting the wire rope, crimping the clamp pipe, and adjusting the blade. ●Do not use wire ropes or aluminum pipes other than those of the indicated size. ●Do not cut wire rods that exceed the cutting capacity.
