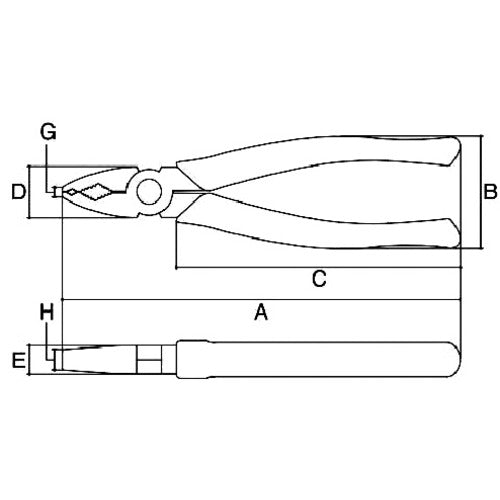

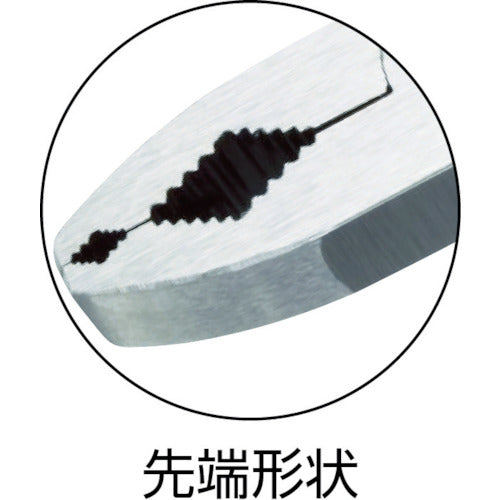

Catalog number: DS-175TZ Features: ●The vertical groove and tip gripping part have been changed to accommodate truss screws. ●The tip shape is easy to grip and the diamond shape provides three-point support for a secure grip. ●Grip shape makes it easy to apply force. Applications: ●For removing screws that can no longer be removed with a screwdriver. Specifications: ● Total length (mm): 175 ● Grip width (mm): 49 ● Tip width (mm): 22.0 ● Thickness (mm): 12.5 ● Tip length (mm): 27 ● Compatible screws: M2 to M4 (truss screws), M1.6 to M6 (pan head screws), 3 to 13 mm (hexagonal screws) ● Applicable truss screws: M2 to M4 (DS-150TZ, DS-175TZ), M2 to M6 (DS-215TZ) ● Applicable pan head screws: M1.6 to M6 (DS-150TZ, DS-175TZ), M2 to M8 (DS-215TZ) ● Dimensions (mm): A = 175 / B = 49 / C = 126 / D = 22 / E = 12.5 / G = 4.5 / H = 9.4 Material / Finish: ● Carbon steel for mechanical structures ● Grip: Elastomer resin Caution: ● Never conduct electricity through this tool. It is a non-insulated tool.
