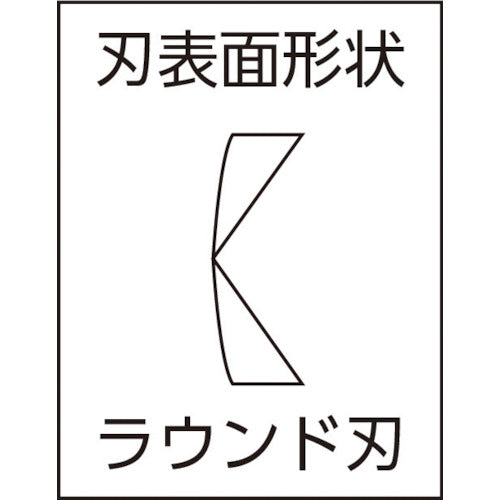

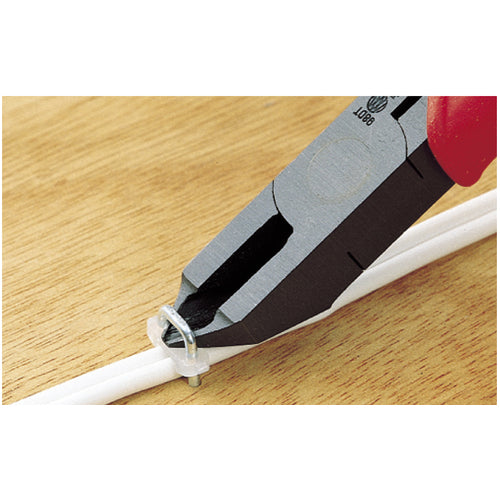

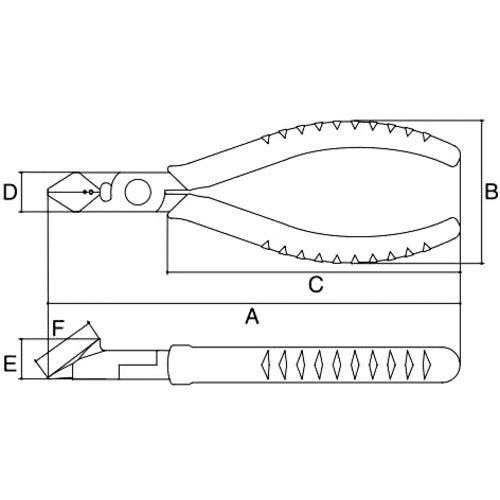

Catalog number: DNP-100 Features: ●One tool can be used for various electrical wiring work. ●The blade angle of 37° allows the blade to be inserted from an oblique direction, making it convenient for cutting in complicated or deep places. ●The tip of the blade can be used to remove staples. Applications: ●Electrical work. Specifications: ●Total length (mm): 111 ●Blade surface shape: Round blade ●Cutting capacity (mm) Iron wire: φ1.0 ●Cutting capacity (mm) Copper wire: φ1.2 ●Round blade ●Cutting capacity (MM2) Copper stranded wire: 1.25 ●Dimensions (mm): A=114/B=49/C=79/D=12/E=12.5/F=19 Material/Finish: ●Vanadium steel ●Grip: Elastomer resin Caution: ●Never conduct electricity through the tool. This is a non-insulated tool. ●Do not use as a hammer. ●Do not use beyond the range of use.
