Contact: Tin plated
Lead wire: 200mm (equivalent to AWG#24)
Rating: 1A/125V/AC/DC
Suitable through-hole diameter: 0.9 to 1.0 mm
Compatible board thickness: 1.6mm

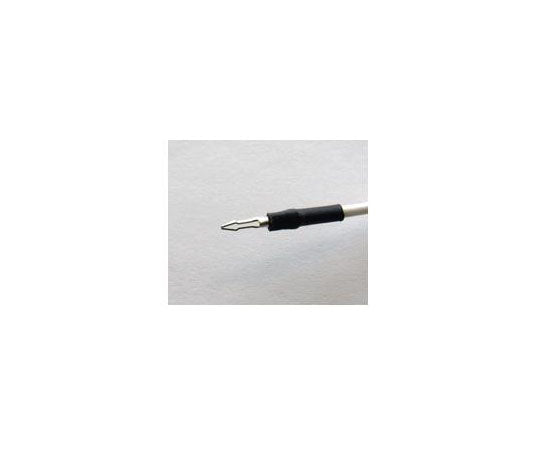

This is a test wire with a spring terminal at the tip.

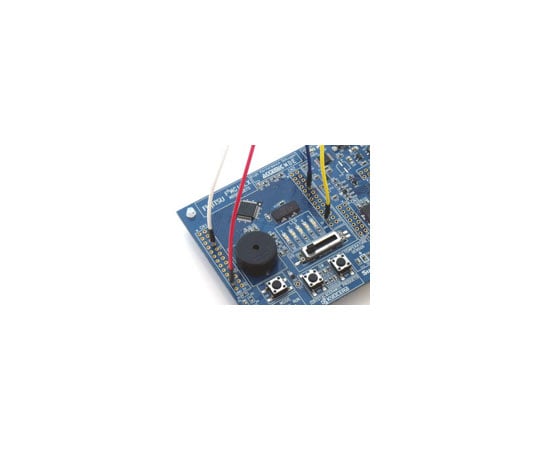

Simply insert into the through hole to input and check signals.
It is useful for rewriting microcontroller firmware and measuring waveforms.

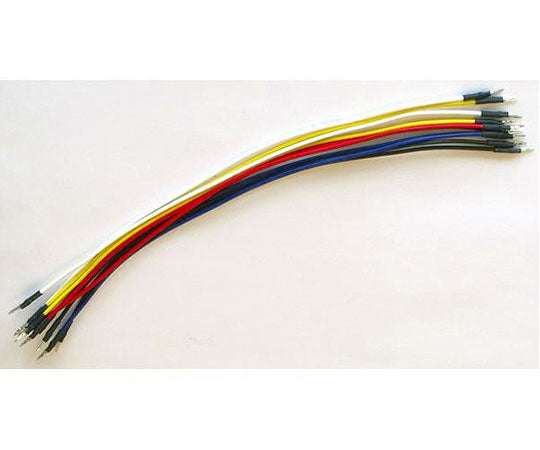

There are five colors: red, yellow, blue, white, and black, with two of each color, for a total of 10 pieces.
