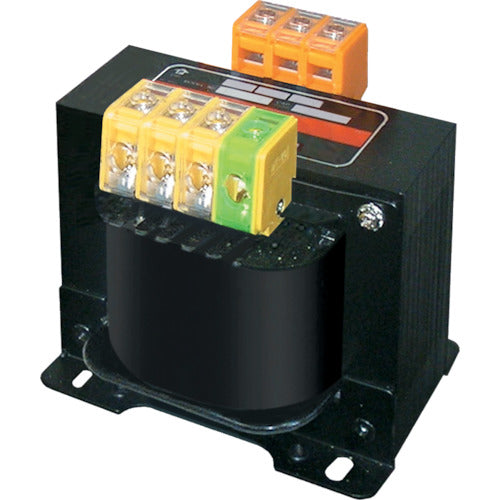

Swallow Power Transformer (Step-down only type) 150VA SC21-150E 1 unit

Catalog number: SC21-150E Features: ●Industrial single-phase compound-wound transformer screw-up type terminal block. ●Includes electrostatic shield. ●The use of a resin-molded bobbin prevents insulation failure caused by moisture and dust in paper-wrapped bobbins. ●There is no need to remove the protective cover or worry about screws falling off. Simply insert and tighten the crimp terminal to complete the work, reducing wiring time by approximately one-fifth. ●The terminal blocks for each phase are color-coded as input, output, and earth, making them easy to distinguish at a glance and improving the prevention of incorrect wiring. ●The use of pop nuts allows the screwdriver to be operated vertically, making installation quick and reliable. Applications: ●Converts input voltage to output voltage. Specifications: ● Input voltage (V): 220, 200, 0 ● Output voltage (V): 110, 100, 0 E ● Capacity (VA): 150 ● Capacity (kVA): 0.15 ● Width (mm): 96 ● Depth (mm): 102 ● Height (mm): 103 ● Terminal screw (mm): 4 ● Insulation type: E type ● Secondary current (A): 1.5 ● JIS standard compliant ● Input 220, 200, 0V Output 110, 100, 0V E 150VA ● ROHS compliant Material / Finish: ● Copper ● Iron ● Resin
