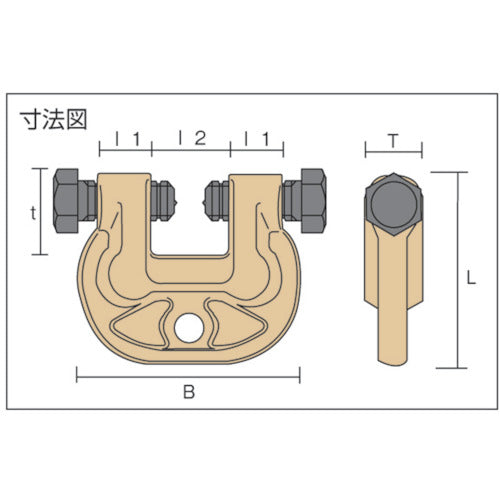

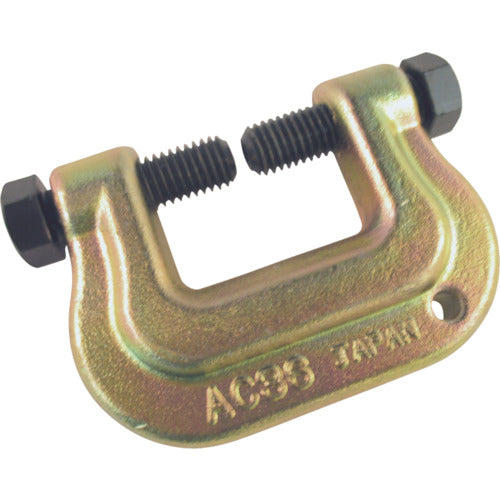

Catalog number: AC36 Features: ●Compared to conventional welding and bolt joints, it significantly reduces work time. ●Strongly and securely clamps steel materials without the bolt coming loose. ●The hole on the back of the main body can be used for laying protective sheets or ropes. Applications: ●Access platforms, overbridges, work platforms, scaffolding, support and maintenance platforms, temporary bridges, etc. ●Mainly for boltless clamping of temporary structures. Specifications: ●Width (mm): 20 ●Position depth (mm): 65 ●Clamping range (mm): 9-36 ●Guaranteed load (kN): 10 ●Bolt tightening force (N・m): 49 ●Bolt: M12, hexagonal 17mm across ●L (mm): 65 ●B (mm): 90 ●T (mm): 20 ●t (mm): 35 ●a (mm): 20 ●b (mm): 40 Material/Finish: ●Special steel
