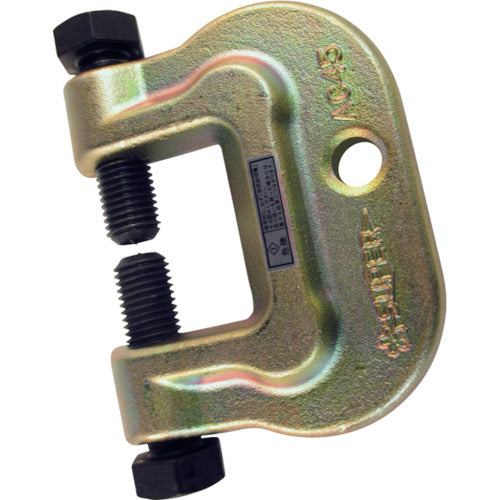

Super Iron Man (temporary narrow fastening bracket) Clamping range 9-45mm Bolt width 24 type AC45 1 piece

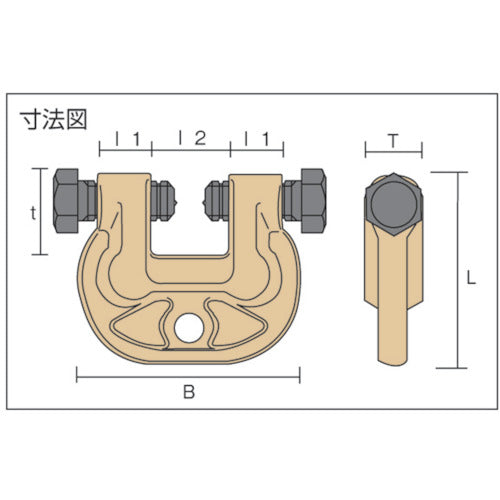

Catalog number: AC45 Features: ●Compared to conventional welding and bolt joints, it significantly reduces work time. ●Strongly and securely clamps steel materials without the bolt coming loose. ●The hole on the back of the main body can be used for laying protective sheets or ropes. Applications: ●Access platforms, overbridges, work platforms, scaffolding, support and maintenance platforms, temporary bridges, etc. ●Mainly for boltless clamping of temporary structures. Specifications: ●Width (mm): 26 ●Position depth (mm): 92 ●Clamping range (mm): 9-45 ●Guaranteed load (kN): 30 ●Bolt tightening force (N・m): 147 ●Bolt: M16, hexagonal 24mm across ●L (mm): 92 ●B (mm): 114 ●T (mm): 26 ●t (mm): 44 ●a (mm): 28 ●b (mm): 48 Material/Finish: ●Special steel
