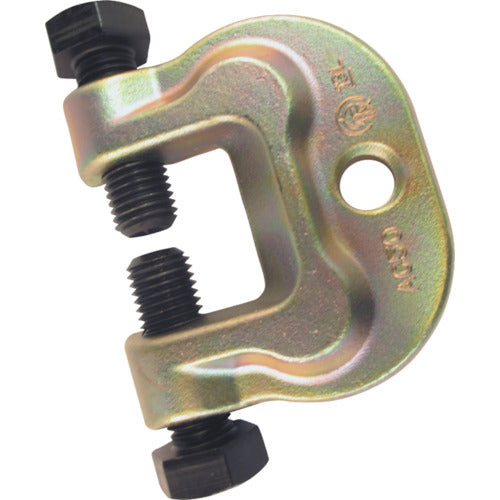

Super Iron Man (temporary narrow fastening bracket) Clamping range 9-50mm Bolt width 36 type AC50 1 piece

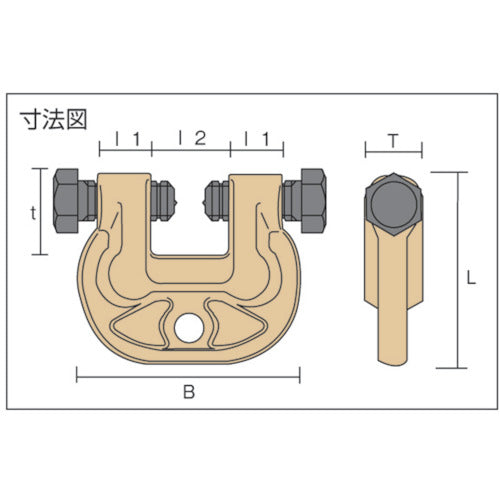

Catalog number: AC50 Features: ●Compared to conventional welding and bolt joints, it significantly reduces work time. ●Strongly and securely clamps steel materials without the bolt coming loose. ●The hole on the back of the main body can be used for laying protective sheets or ropes. Applications: ●Access platforms, overbridges, work platforms, scaffolding, support and maintenance platforms, temporary bridges, etc. ●Mainly for boltless clamping of temporary structures. Specifications: ●Width (mm): 38 ●Position depth (mm): 120 ●Clamping range (mm): 9-50 ●Guaranteed load (kN): 50 ●Bolt tightening force (N・m): 294 ●Bolt: M24・Hexagonal 36mm across ●L (mm): 120 ●B (mm): 135 ●T (mm): 38 ●t (mm): 55 ●a (mm): 35 ●b (mm): 55 ●Temporary Industrial Association certified product Material/Finish: ●Special steel
