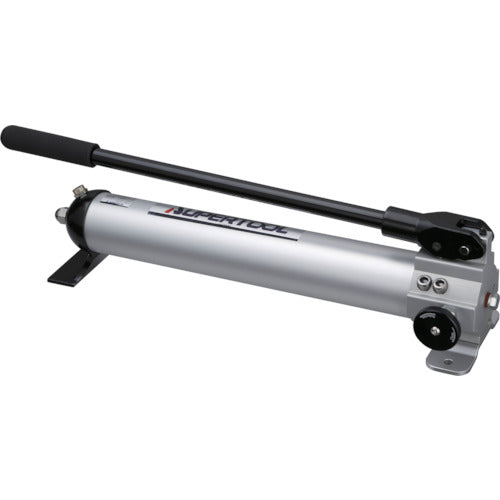

Super Aluminum Hydraulic Pump (for single acting cylinders) Effective oil volume: 500 cm3 HP500AN 1 unit

Catalog number: HP500AN Features: ●A discharge pump with two-stage automatic switching between high and low pressure. ●Made of aluminum, it is easy to carry. Applications: ●Hydraulic pump for single-acting cylinders Specifications: ●Maximum operating pressure (MPa): High pressure: 70, Low pressure: 1.4 ●Compatible hose: HH2N ●Maximum operating pressure (MPa) Low pressure: 1.4 ●Maximum operating pressure (MPa) High pressure: 70 ●Discharge volume per operation (ml) Low pressure: 6.3 ●Discharge volume per operation (ml) High pressure: 1.6 ●Discharge port diameter (Rc): 3/8 ●Effective oil volume (L): 0.5 Material/Finish: ●Aluminum
