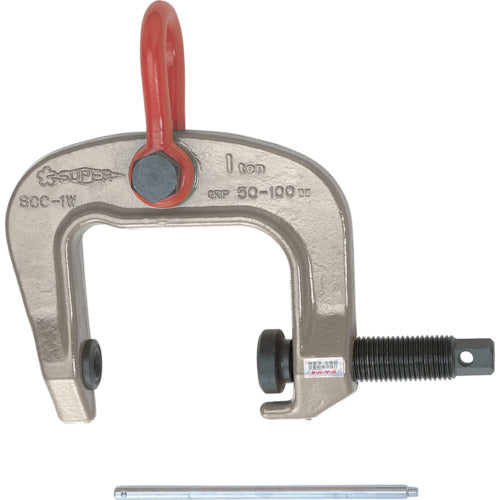

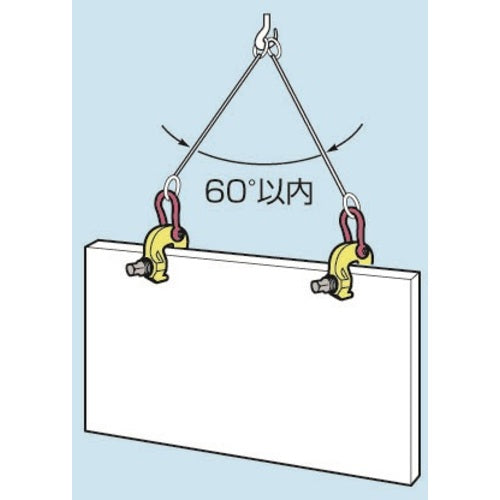

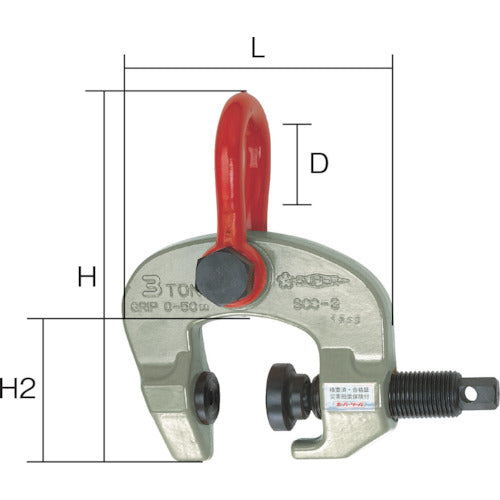

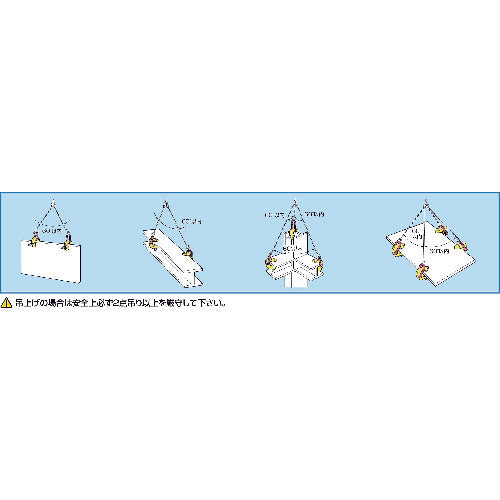

Catalog number: SCC1W Features: ● A versatile lifting clamp that can be used for horizontal, vertical, and inverted lifting of all kinds of objects, including spherical and curved plates, with a screw system. ● When loaded, the cam tilts in proportion to the load, increasing the gripping force. ● The main body is a one-piece die-forged special alloy steel, which is strong and extremely durable. ● Compatible with the S・M・A・R・T management app, and can be registered for free. Applications: ● Lifting steel plates, shaped steel, etc. Specifications: ● Basic load capacity (t): 1 ● Clamping range (mm): 50-100 ● Dimensions (mm) D: 70 ● Dimensions (mm) H: 273 ● Dimensions (mm) H2: 126 ● Dimensions (mm) L: 225 ● Height (mm): 273 ● Width (mm): 225 Note: ● SCC0.5 and SCC-W (wide type) are for vertical lifting only, horizontal lifting is not possible.
