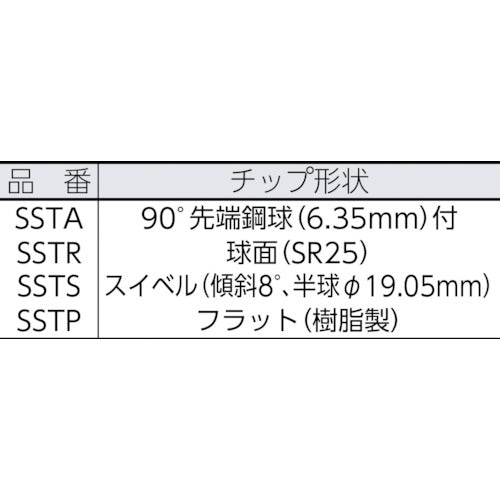

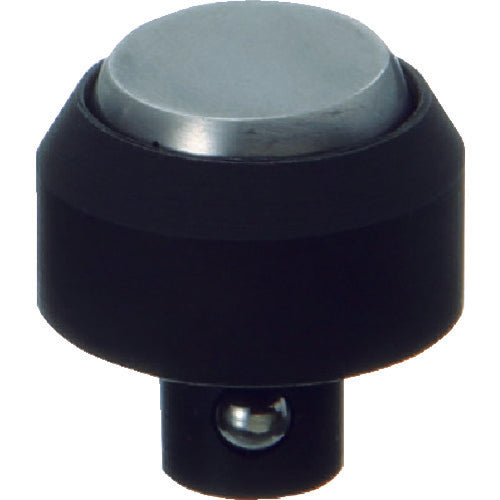

Catalog number: SSTS Features: ● Tip with ball plunger that is difficult to come off. Applications: ● Tip dedicated to screw support that can be used for all workpieces. Specifications: ● Outer diameter (mm): 25 ● Height (mm): 16 ● Tip outer diameter (mm): φ25 ● Dowel diameter (mm): φ11 ● Length (mm): 10 ● Tip shape: Swivel (tilt 8°, hemisphere φ19.05mm) ● Compatible screw support: FS80LS to 300LS Material/Finish: ● Steel (S45C) ● SSTP: Resin ● Treatment: Black dye finish
