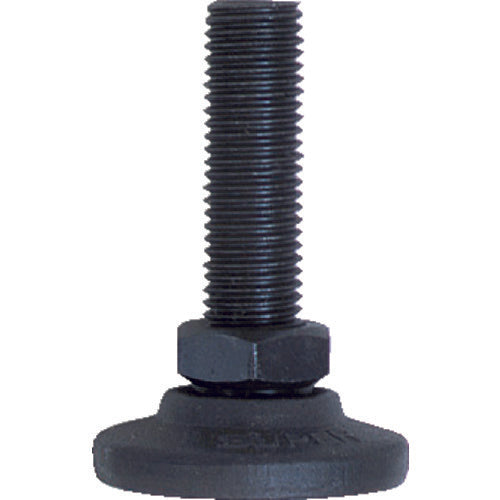

Super screw support (screw type) Screw diameter: M12 Hexagonal width: 6 FR-12 1 piece

Catalogue number: FR-12 Features: ● Height adjustment is achieved by turning the screw with a hexagonal wrench to raise and lower the clamp body. In addition, a swivel nut is used, allowing it to tilt up to 6° forward, backward, left and right. Uses: ● For adjusting the height of jigs. Specifications: ● Outer diameter (mm): 40 ● Height (mm): 60 ● Load capacity (kN): 16 ● Screw diameter: M12 ● Opposite side dimensions (mm): 6 ● Compatible clamps: Super Tool clamps FGB and FPB-B type ● Use in conjunction with the uniclamp body (duck-shaped FGB and flat-shaped FPB) ● Screw type Material/Finish: ● Steel (S45C) ● Treatment: Hardening (35-47HRC), black dye finish
