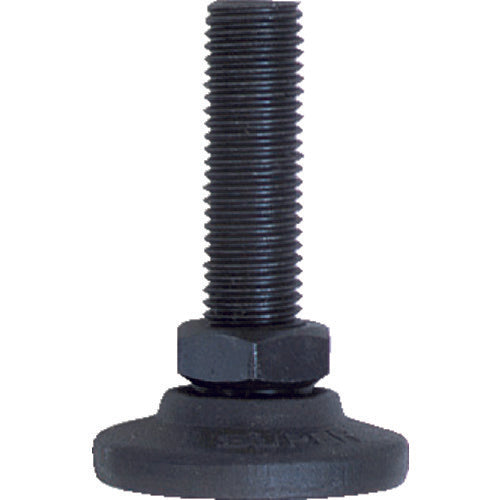

Super screw support (screw type) Thread diameter: M16 Hexagonal width: 8 FR-16 1 piece

Catalogue number: FR-16 Features: ● Height adjustment is achieved by turning the screw with a hexagonal wrench to raise and lower the clamp body. In addition, a swivel nut is used, allowing it to tilt up to 6° forward, backward, left and right. Applications: ● For adjusting the height of jigs. Specifications: ● Outer diameter (mm): 50 ● Height (mm): 78 ● Load capacity (kN): 28 ● Screw diameter: M16 ● Opposite side dimensions (mm): 8 ● Compatible clamps: Super Tool clamps FGB and FPB types ● Use in conjunction with the Uniclamp body (duck-shaped FGB and flat-shaped FPB) ● Screw type Material/Finish: ● Steel (S45C) ● Treatment: Hardening (35-47HRC), black dye finish
