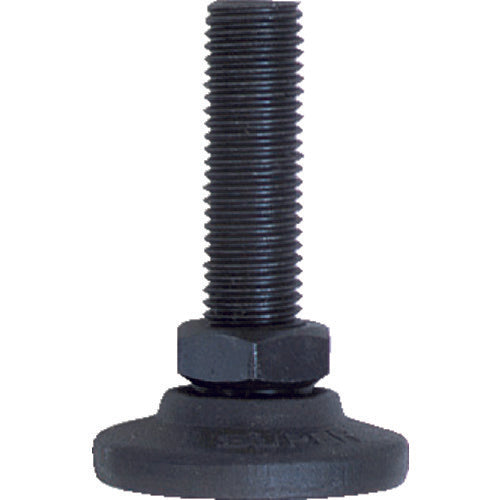

Super screw support (screw type) Screw diameter: M20 Hexagonal width: 10 FR-20 1 piece

Catalogue number: FR-20 Features: ● Height adjustment is achieved by turning the screw with a hexagonal wrench to raise and lower the clamp body. In addition, a swivel nut is used, allowing it to tilt up to 6° forward, backward, left and right. Uses: ● For adjusting the height of jigs. Specifications: ● Outer diameter (mm): 60 ● Height (mm): 94 ● Load capacity (kN): 37 ● Screw diameter: M20 ● Opposite side dimensions (mm): 10 ● Compatible clamps: Super Tool clamps FGB and FPB types ● Use in conjunction with the Uniclamp body (duck-shaped FGB and flat-shaped FPB) ● Screw type Material/Finish: ● Steel (S45C) ● Treatment: Hardening (35-47HRC), black dye finish
