Super screw support long stroke type (2 pieces in a set) Stroke: 140-300 FS300LS 1 set

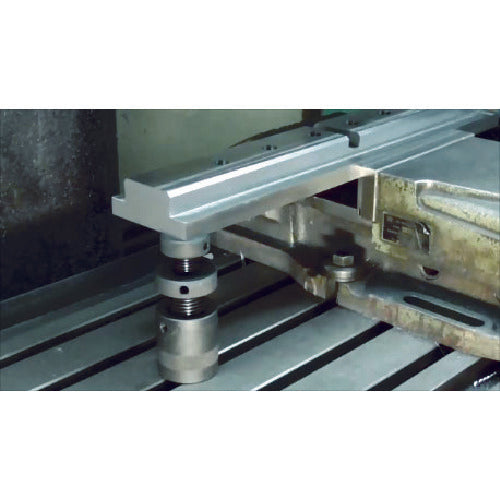

Catalog number: FS300LS Features: ●By providing an intermediate male screw, a long stroke has been achieved. (1.5 to 2 times longer than our previous model) ●By turning the intermediate male screw, the position of the screw may shift or the workpiece may be scratched when the male screw is turned under load. ●The intermediate male screw can be adjusted with light force because the upper and lower male screws have the same direction but different pitches. ●The lock screw (lock piece) that locks the male screw prevents the screw from loosening. Applications: ●For supporting heavy objects, adjusting the height of the clamp, and suppressing chatter during cutting. Specifications: ●Height (mm): 140 to 300 ●Load capacity (kN): 150 ●Top diameter (mm): 50 ●Body diameter (mm): 60 ●Stroke (mm): 150 ●Set of 2 Materials/Finish: ●Steel (S45C) ●Treatment: Hardening (35 to 47HRC), black dye finish
