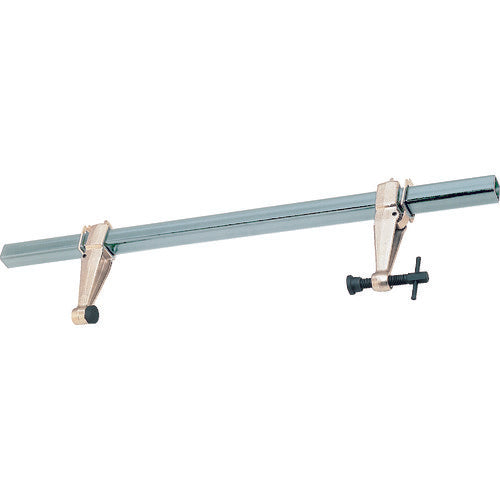

Super Super Setter (Strong Type) Clamping range: 0-750mm Depth: 150mm FCW-415 1 S

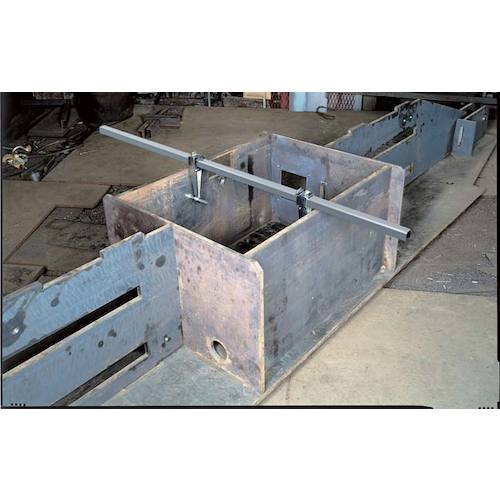

Catalog number: FCW-415 Features: ●The square pipe can be separated from the main body, and the clamping range can be freely selected by using square pipes of different lengths. ●The adapter can be easily removed, and the fixed adapter and male thread adapter can be freely combined for convenient use according to the work. ●The standard square pipe uses high tensile steel (STKT590) and is lighter and stronger than commercially available square pipes. ●It can also be used for work in the tension direction. Applications: ●Temporary fixing work for various workpieces such as steel frames, bridges, and civil engineering, including welding work. Specifications: ●Total length (mm): 1000 ●Pocket depth (mm): 150 ●Clamping range (mm): 0 to 750 ●Type: Strong type ●Allowable load (kN) (when clamping range is 750 mm): 3.9 ●Guaranteed load (kN): 30 ●Compatible square pipe (mm): □40 pipe thickness 3.5 ●Standard included square pipe: □40 x 1000 x t 3.5 mm Material/Finish: ●Special steel Note: ●The mass includes the standard square pipe.
