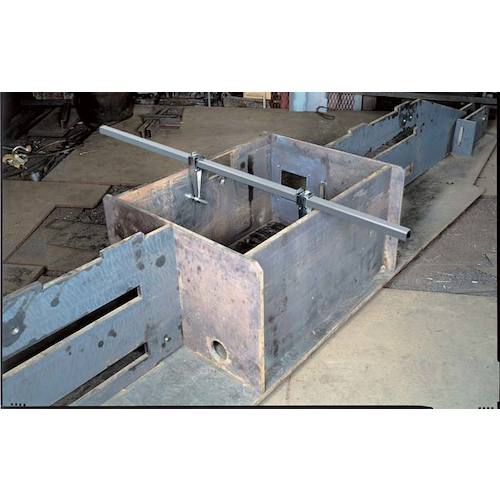

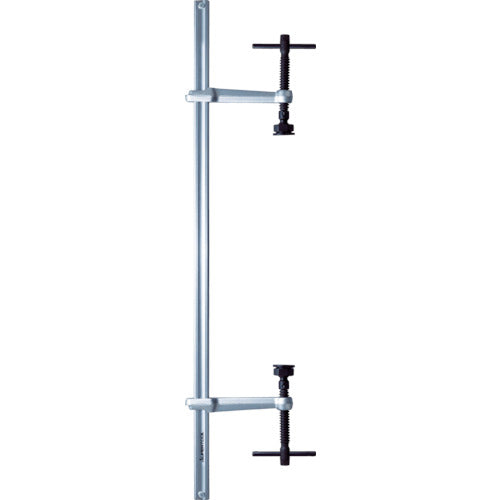

Catalog number: FCW27120 Features: ●The clamping body on both sides slides on the rail, allowing for speedy tightening and spreading operations. ●The final tightening with a wrench on the hexagonal head of the screw allows for more secure tightening. ●The adapter can be tightened at angles up to approximately 35°. ●The maximum clamping pressure when clamping 150 mm is 11.5 kN. Specifications: ●Total length (mm): 1000 ●Position depth (mm): 120 ●Clamping range (mm): 0-750 ●Type: Rail type ●Maximum clamping pressure (kN) (when clamping 150 mm): 10 ●Rail dimensions (mm): 27 x 13 Material/Finish: ●Special steel Set contents/Accessories: ●Rail (1000 mm) x 1 ●Tightening body (with male thread, adapter, and handle): 2 sets
