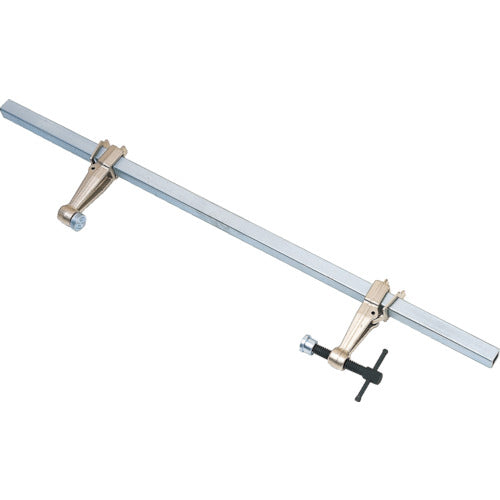

Super Super Setter (small and lightweight type) Clamping range: 0-700mm Depth: 100mm FCW-210 1 S

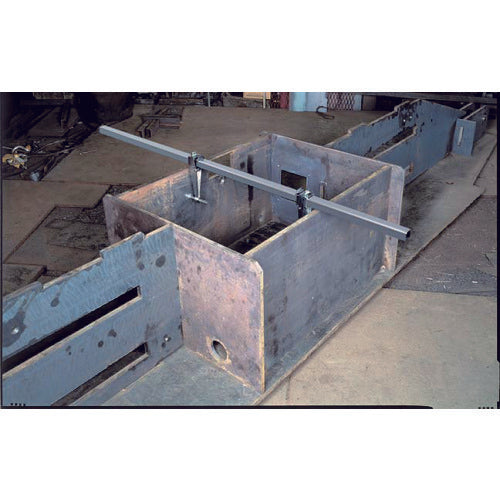

Catalog number: FCW-210 Features: ●The square pipe can be separated from the main body, and the clamping range can be freely selected by using square pipes of different lengths. ●The adapter can be easily removed, and the fixed adapter and male thread adapter can be freely combined for convenient use according to the work. ●The standard square pipe uses high tensile steel (STKT590) and is lighter and stronger than commercially available square pipes. ●It can also be used for work in the tension direction. Applications: ●Temporary fixing work for various workpieces such as steel frames, bridges, and civil engineering, including welding work. Specifications: ●Total length (mm): 900 ●Pocket depth (mm): 100 ●Clamping range (mm): 0 to 700 ●Type: Small and lightweight type ●Allowable load (kN) (when clamping range is 750 mm): 3.5 ●Guaranteed load (kN): 10 ●Compatible square pipe (mm): □25 pipe thickness 3.0 ●Standard included square pipe: □25×900× t 3.0mm Material/Finish: ●Special steel Note: ●The mass includes the standard square pipe.
