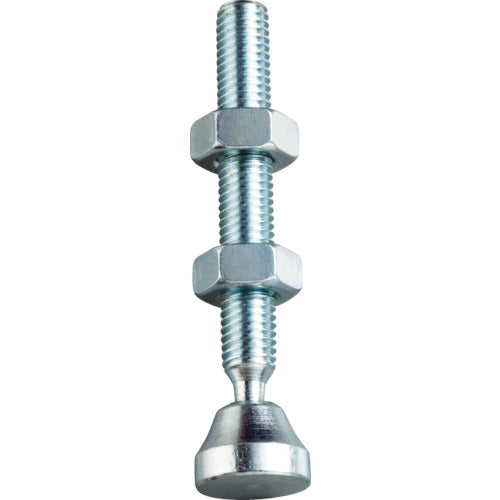

Swivel head bolt for Super Toggle Clamp Thread size: M10 x P1.5 TNS1085 1 pc

Catalogue number: TNS1085 Use: ● Parts for toggle clamp Specifications: ● Product name: Toggle clamp parts bolts and nuts (with swivel head) ● Compatible models: TPL250F, TPPM250, TDV650F, TDD38F, TPL200F, TDD38F, TDD38S, TDKL38F, TDH550F, TDBM41F, TDA44F, TDB44F ● Overall length (mm): 85 ● Thread dimensions (mm): M10 x P1.5 ● Nut hexagonal side size (mm): 17 ● Tilt angle (°): 7 ● Swivel part dimensions (mm) Tip diameter x tip thickness x height: 20 x 5.5 x 15 ● Swivel part oscillation angle: 7° Material/Finish: ● General structural rolled steel Note: ● TNG0422 comes with one nut. ●One of the nuts for TNG0425, TNG0442, and STNG0425 is a square nut.
