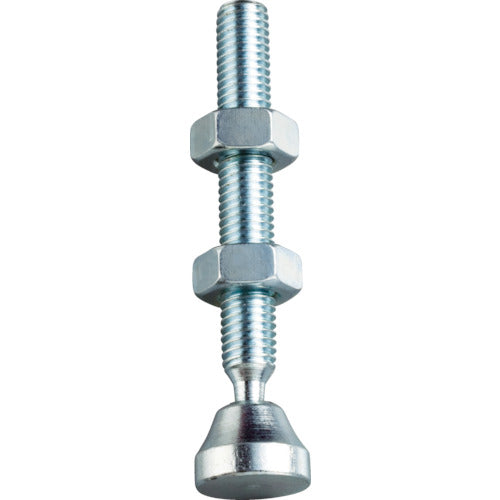

Swivel head bolt for Super Toggle Clamp Thread size: M8 x P1.25 TNS0865 1 pc

Catalogue number: TNS0865 Use: ● Parts for toggle clamp Specifications: ● Product name: Toggle clamp parts, bolts and nuts (with swivel head) ● Compatible models: TPL150F, TDCL38F, TDP42F, TDP42S, TDH450F, TDV450F, TDBS41F, TP02F, TPPM150, TPL100F, TDBL38F, TDBL38S, TDA42F, TDA42S ● Overall length (mm): 65 ● Thread dimensions (mm): M8 x P1.25 ● Nut hexagonal side size (mm): 13 ● Tilt angle (°): 7 ● Swivel part dimensions (mm) Tip diameter x tip thickness x height: 20 x 5.5 x 13 ● Swivel part oscillation angle: 7° Material/Finish: ● General structural rolled steel Note: ● TNG0422 comes with one nut. ●One of the nuts for TNG0425, TNG0442, and STNG0425 is a square nut.
