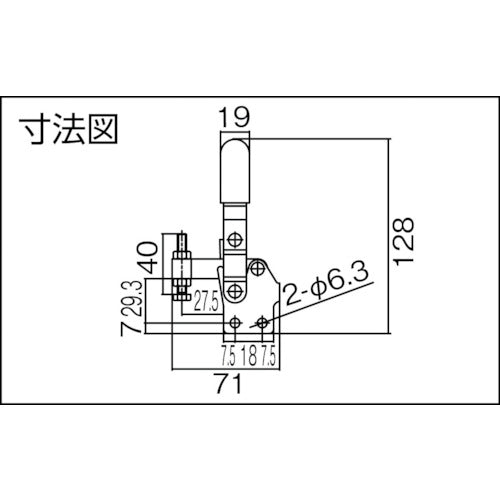

Super Downward Presser Toggle Clamp (Vertical Handle Type) Total Length: 128mm Clamping Force: 1kN Straight Base Stainless Steel (SUS304) STDA40S 1 pc

Catalog number: STDA40S Features: ●Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ●Total length (mm): 128 ●Tightening force (kN): 1.0 ●Attached bolt diameter: M6 x 40 ●Clamp arm movement angle (°): 95 ●Handle operation angle (°): 65 ●Tightening force (kN): 1.0 ●Tightening force (kN): 1 ●Downward pressure type ●Vertical handle ●Straight base Material/Finish: ●Stainless steel (SUS304) Set contents/Accessories: ●Clamp bolt: STNN0640 Note: ●The listed support force is the maximum value. Please note that the value will decrease depending on the pressure position and bolt adjustment.
